Description

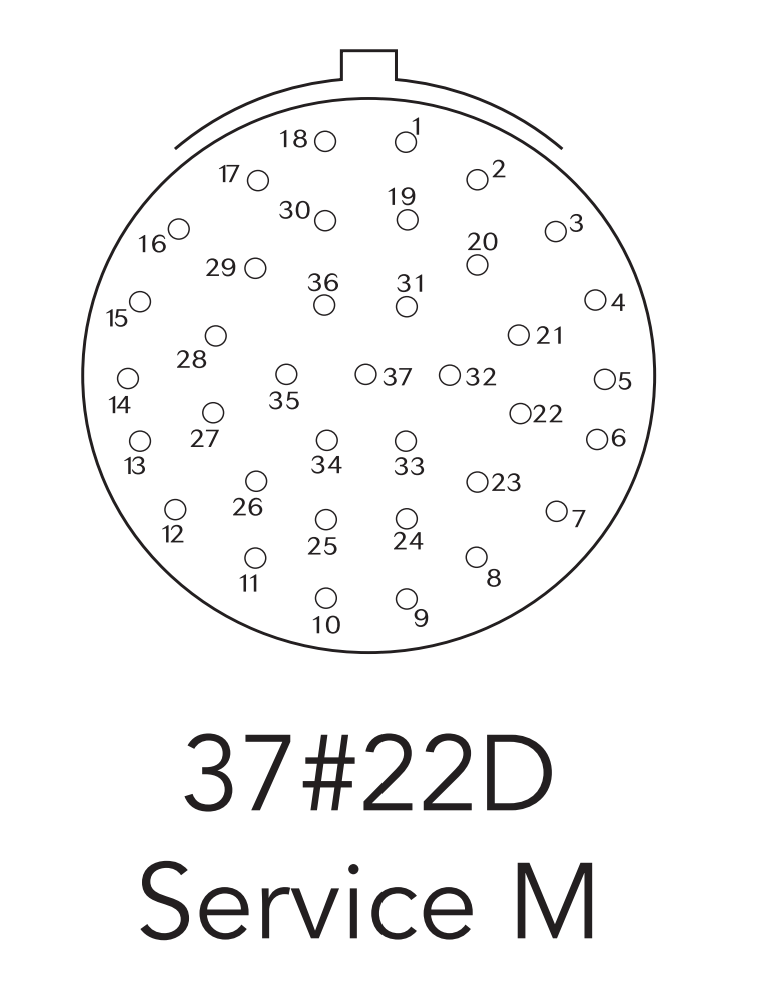

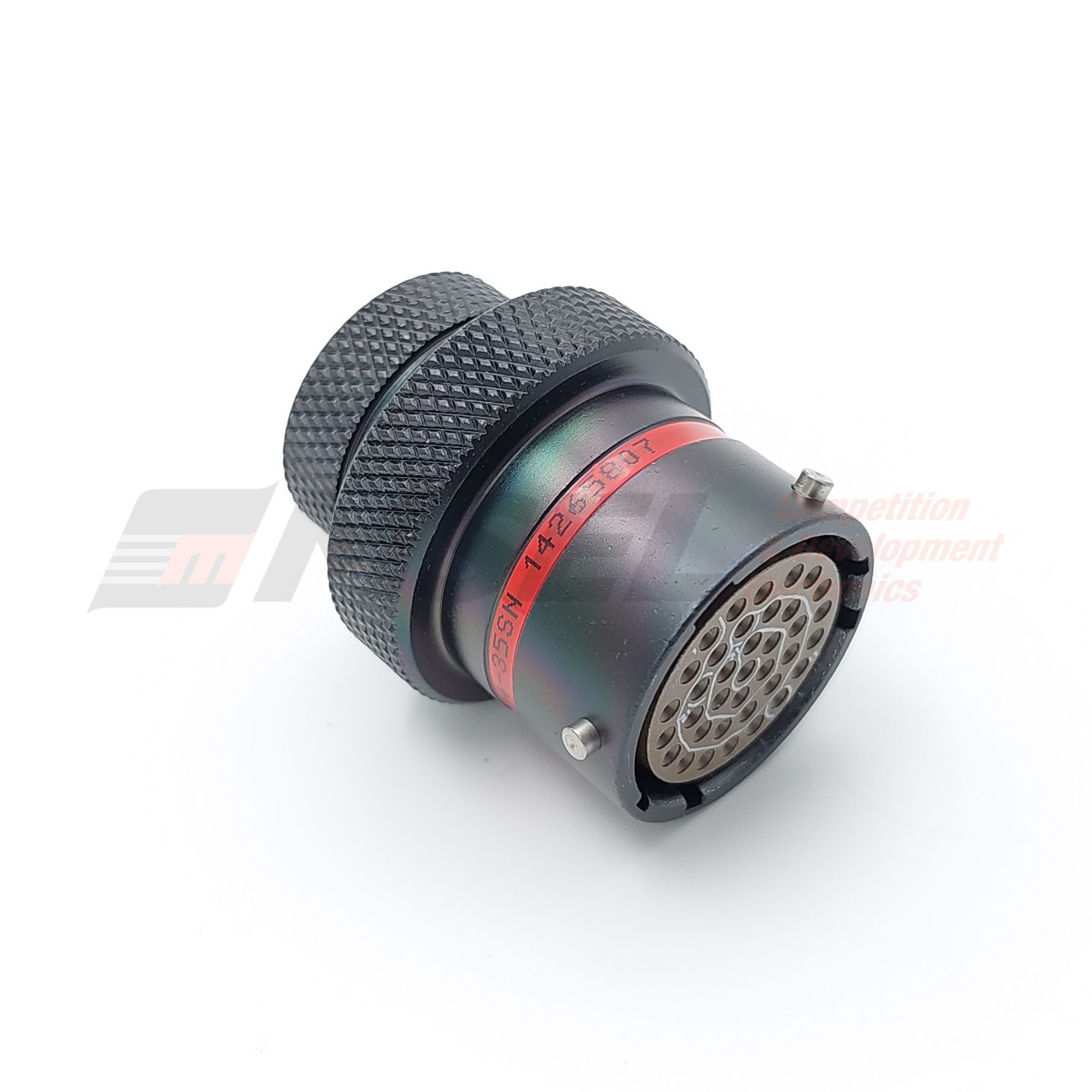

Autosport 37-Way In-line Receptacle with Size 22 Socket Terminals
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 11435SN | |
| Connector Type | In-line receptacle | |
| Shell Size | 14 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 37 | |
| Contact Size | 22D | Supports 26 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK40 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| ØA max. | ØD | G max. |
| 28.3 | 22.22 | 33.50 |
Note: all dimensions are in millimeters (mm)
