Yellow and Green CAN-Bus Mil Spec M22759/32-22-45 Twisted Pair 22AWG Wire

SKU: WIRMYELGRN22TP

Yellow and Green CAN-Bus Mil Spec M22759/32-22-45 Twisted Pair 22AWG Wire
Excl. GST (Incl. GST)
$5.44 ($6.26)
Buy in Bulk and Save!

Description:

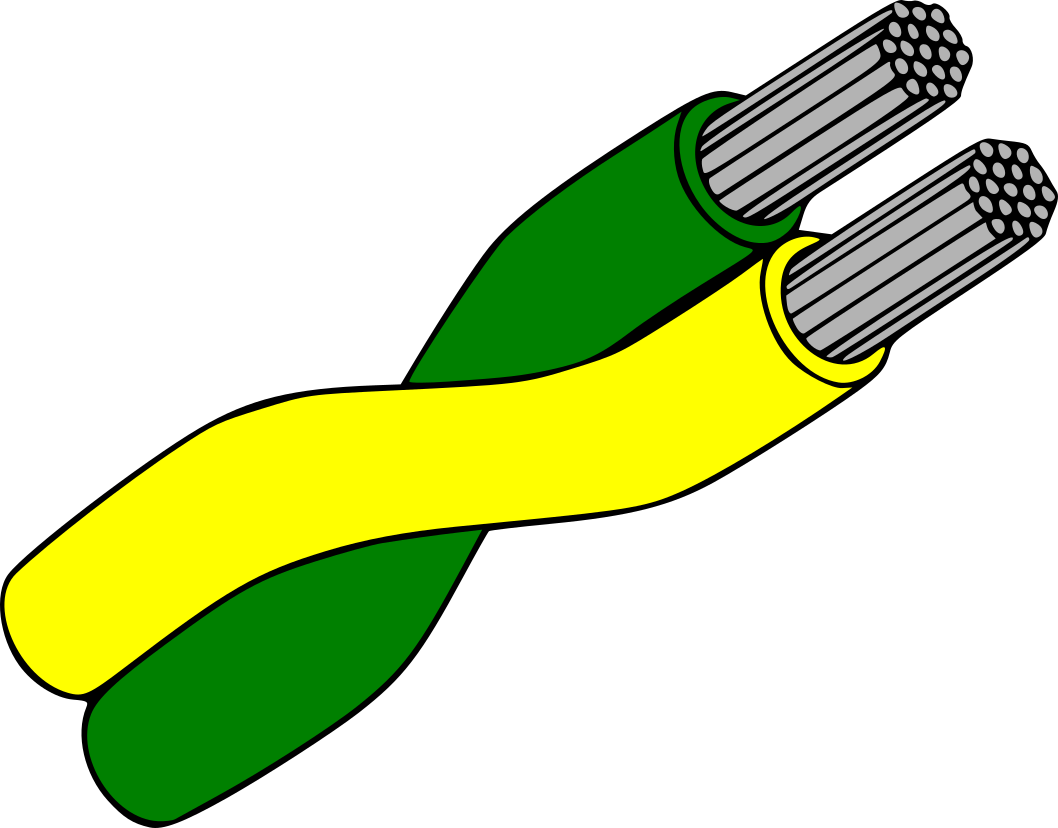

Yellow and Green CAN-Bus Mil Spec M22759/32-22-45 Twisted Pair 22AWG Wire

Save yourself the time and hassle of twisting wires! These yellow and green M22759/32-22 wires are twisted at 1 twist per inch (25.4mm) suitable for CAN bus wiring.

As a general rule we use the green for CAN Low (CAN-) and the yellow for CAN High (CAN+).

  • temperature range -65ºC to +150ºC
  • resistant to alkaline solutions, acids, solvents, oils, fuels
  • fluoropolymer cross-linked modified ETFE single insulation
  • notch and abrasion resistant
  • tinned copper conductor
  • small overall diameter, low weight
  • flame retardant
  • self-extinguishing
  • easy to strip
  • soldering iron resistant
