Solder Sleeve - 4.3mm - no drain wire

SKU: SSNL4.3

Solder Sleeve - 4.3mm - no drain wire
Excl. GST (Incl. GST)
$3.00 ($3.45)
Buy in Bulk and Save!

Description:

M83519/1-3 solder sleeve without drain wire - 4.3mm

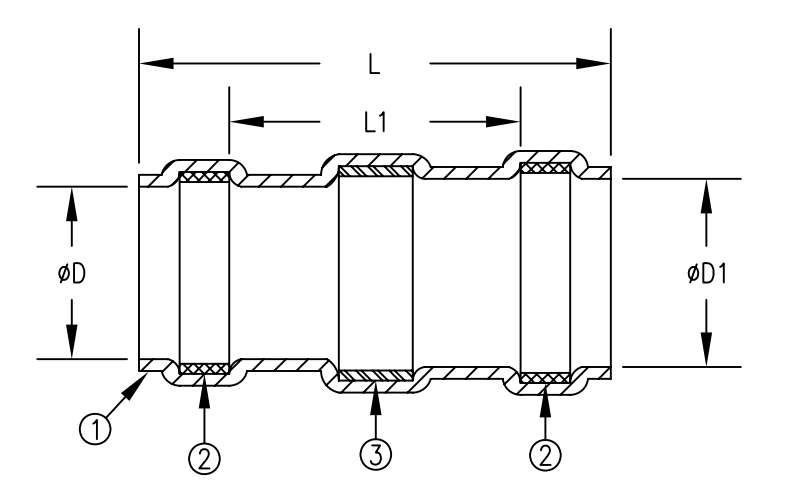

SSNL4.3_2

  1. Insulation Sleeve - heat shrinkable, radiation crosslinked, modified polyuvinylidene flouride. Transparent blue
  2. Meltable Sealing Ring - thermally stabilised thermoplastic
  3. Solder Preform - alloy - Sn63 with red thermochromic indicator

L (+-1.78mm) - 16.5mm

L1 (minimum) - 8.26mm

ØD (minimum) - 4.32mm

ØD1 (minimum) - 5.08mm



Ideal for use with our shielded 22 and 20awg three and two core cable



Recommended cable preparation

SSNL4.3_3

ØD2 (maximum) - 5.08mm

ØD3 (minimum) - 2.16mm

ØD4 (maximum) - 4.32mm

ØD4 (minimum) - 1.27mm

L2 Range - 6.35 to 8.26mm
