Description

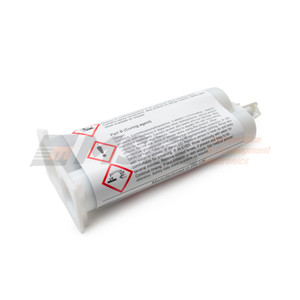

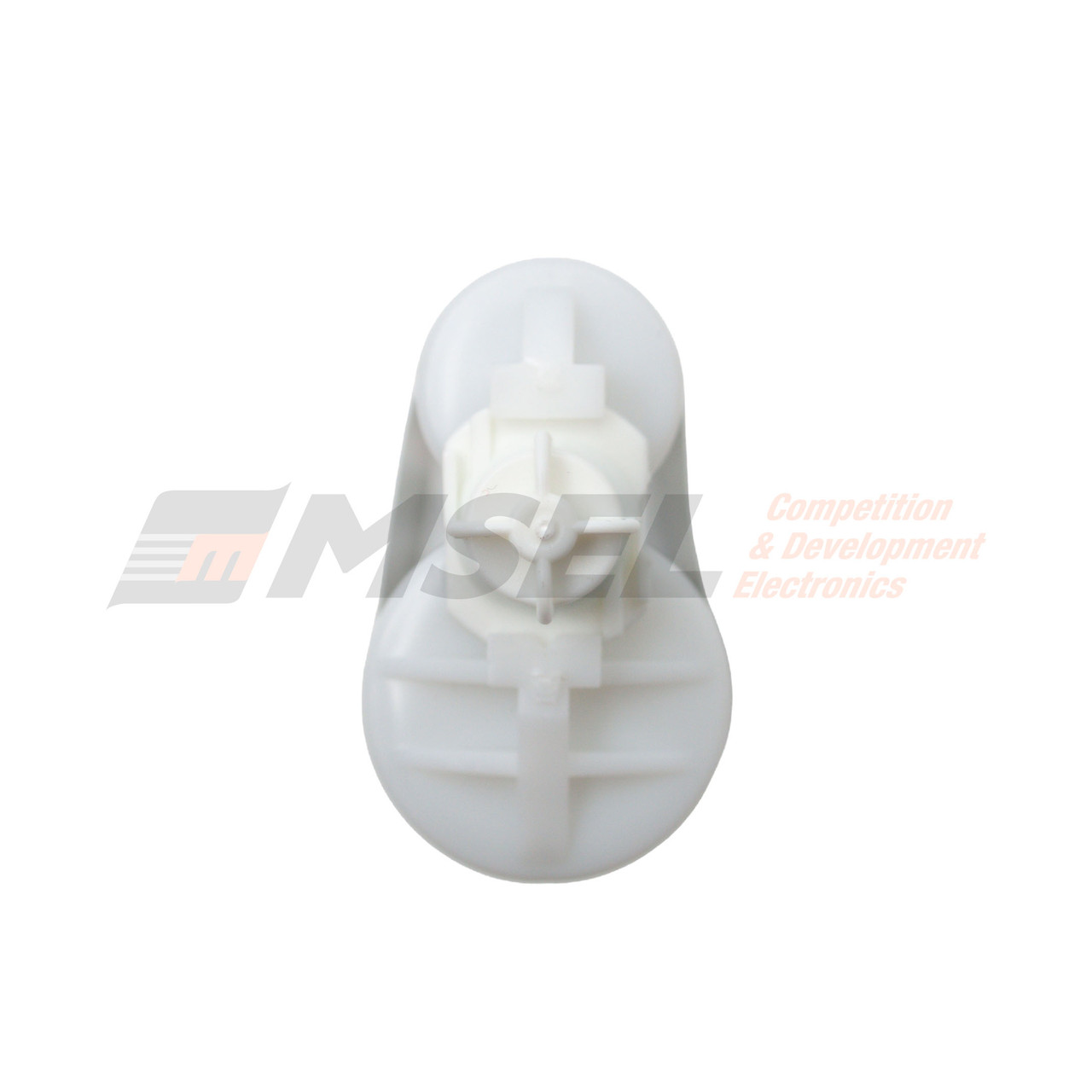

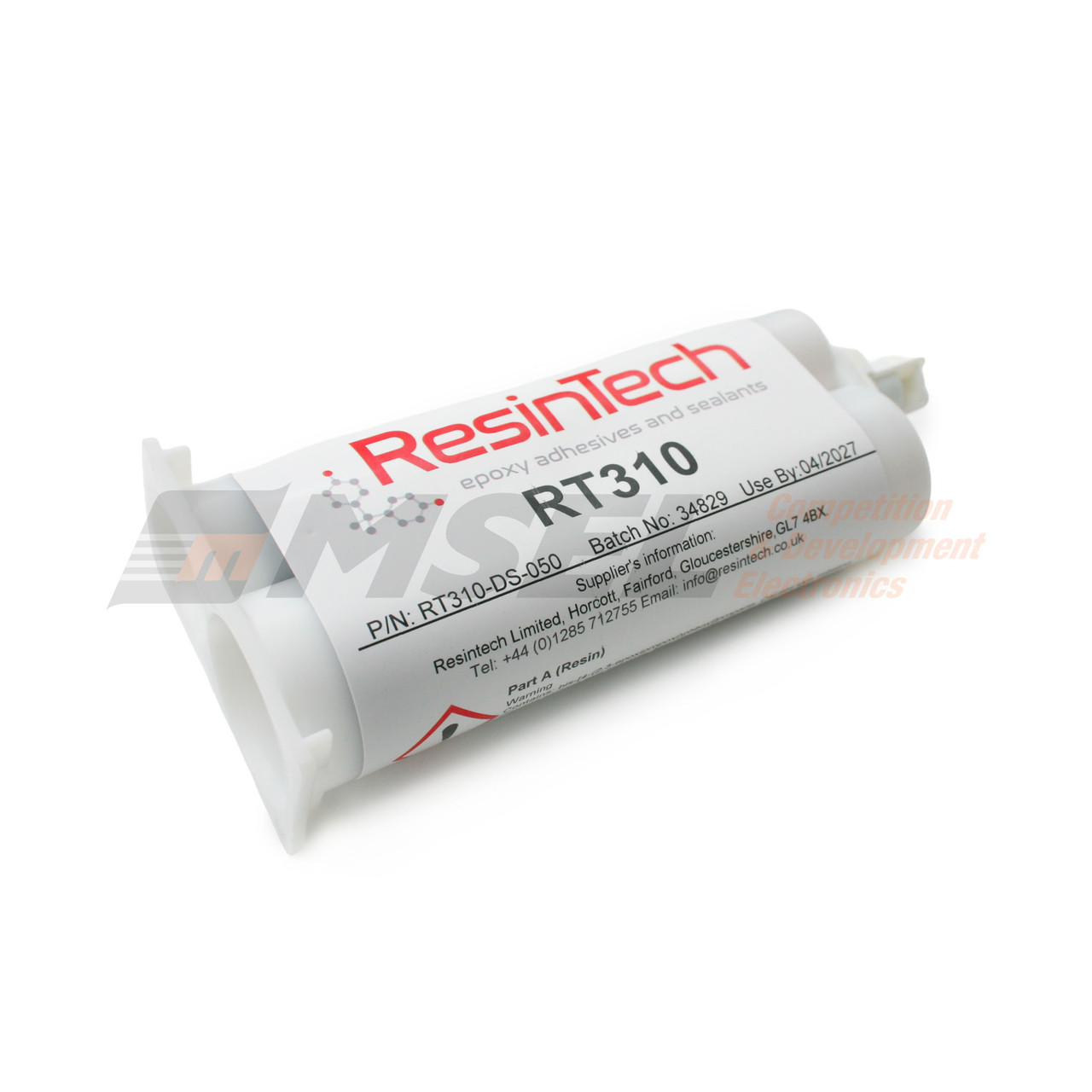

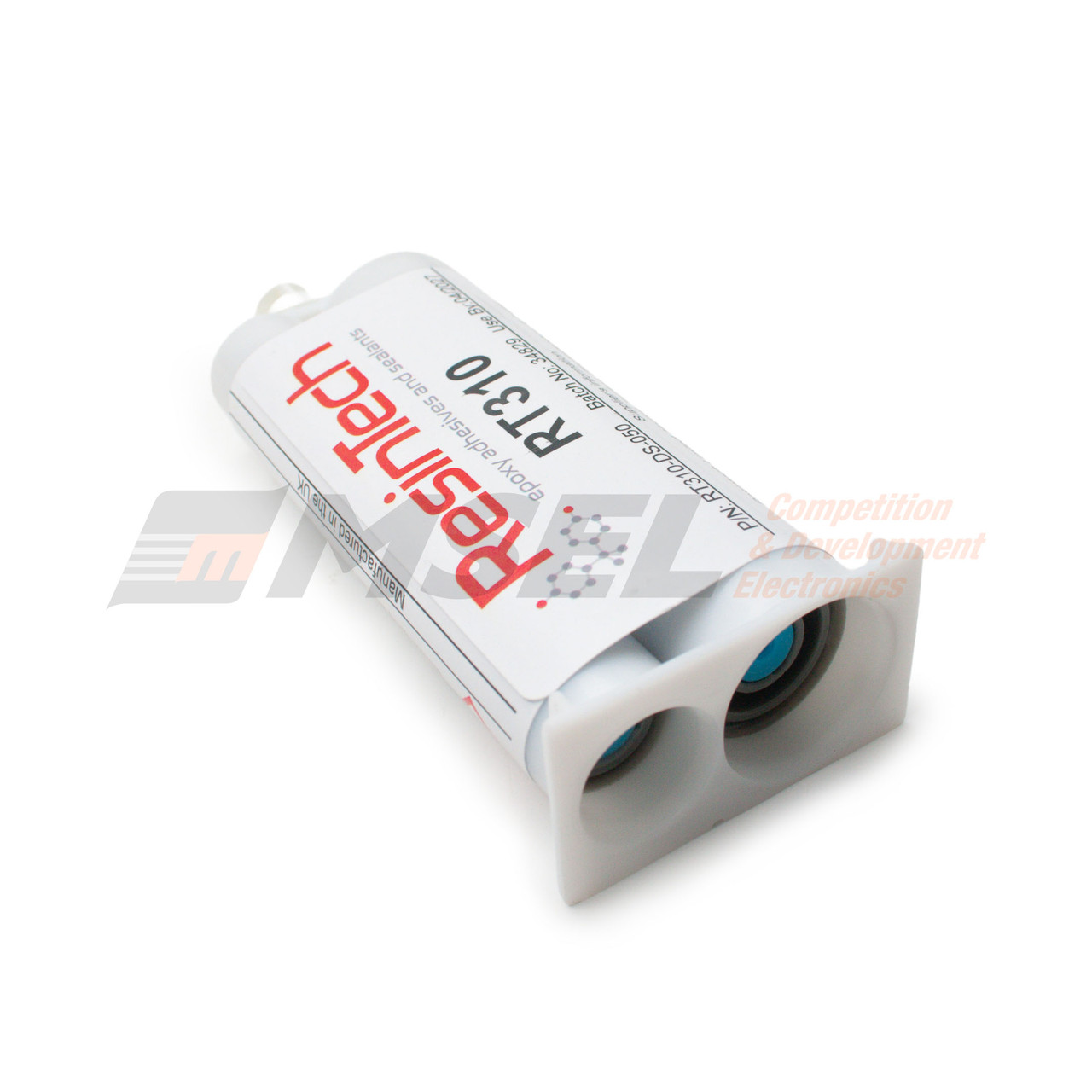

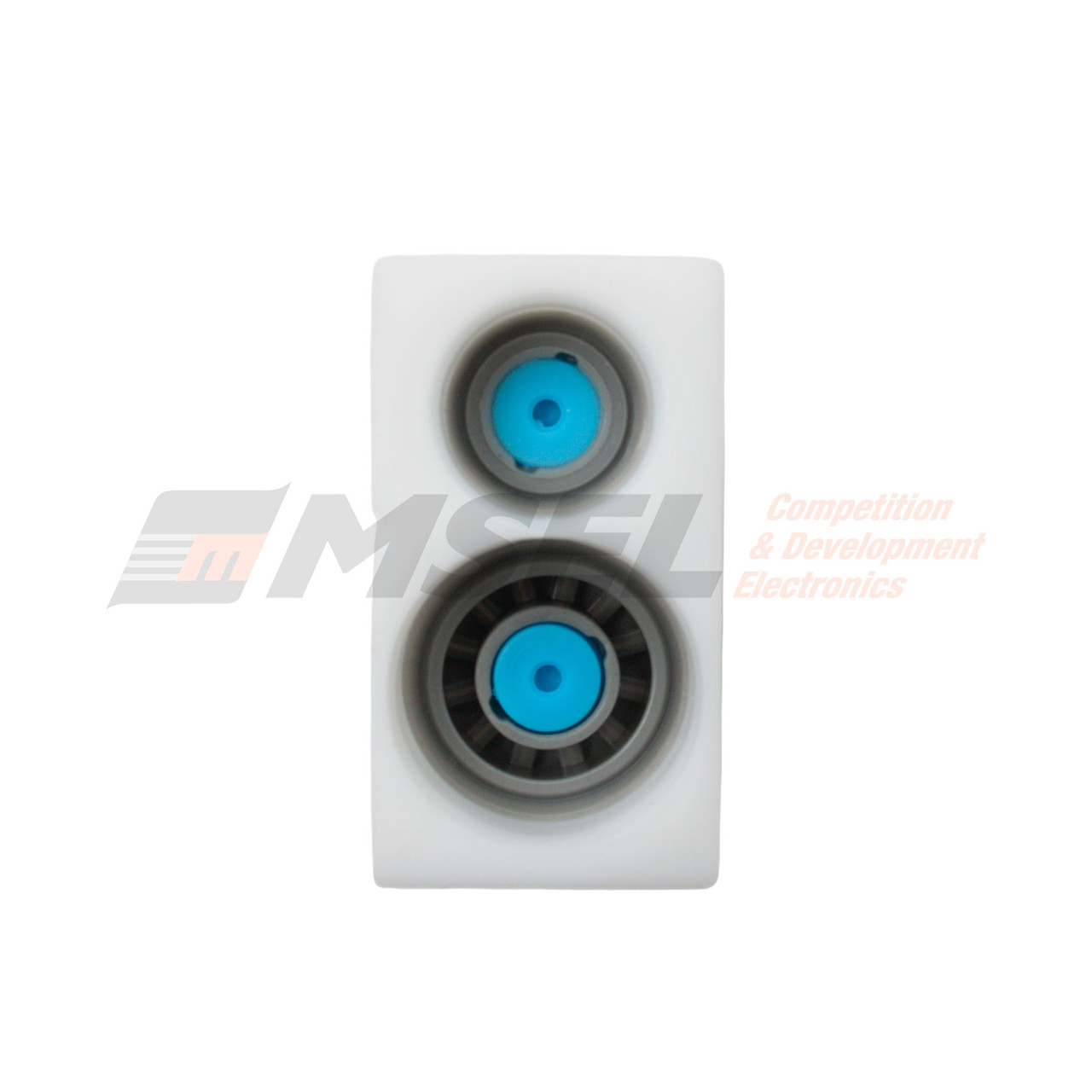

ResinTech RT310 Clear DuoSyringe
The Resintech RT310 is a low viscosity, clear two-part epoxy resin system designed for potting, encapsulation, and bonding applications requiring excellent optical clarity and room temperature cure. It mixes at a 2:1 ratio by weight, offers a 75-minute work life at 23°C, and operates across a temperature range of -55°C to 115°C. With a peak exotherm of just 69°C on 250g masses, it is safe for use with temperature-sensitive electronic components.
Benefits
• Has a degree of flexibility which reduces internal stresses
• Cures with low heat build up so will not damage delicate components (<250g)
• Excellent clarity
• Low viscosity - reduces air entrapment
• High gloss finish even when cured under high humidity
• Available in a variety of colours for various potting applications
• Available in easy-to-use TwinPacks or bulk
Typical Properties
Mix ratio by weight: 2 parts A (Resin) to 1 part B (Curing agent)
Mixed viscosity: 1.0 - 2.0 Pa-s
Density: 1.15
Peak Exotherm: 69°C (250g, more details on page 2)
Operating Temperature: -55oC to 115oC
Curing (250g mass)
Work life at 23oC: 75 minutes
Time to full cure at 23oC: 24 hours
Time to full cure at 60oC: 4 hours
Typical properties (cured for 4 hours at 60°C measurements taken at ambient temperature)
Shore Hardness: 60 - 65 D•
Tensile Strength: 50 MPa / 7250 Psi
Electric Strength: 13 Kv/cm
Volume Resistivity: 14 log10ohm m
Permittivity: 4
•hardness will continue to increase to >70 D over 7 days
Colour
Clear, various
Storage and Shelf Life
Store under normal conditions of 15°C to 30°C in the original, unopened packaging, out of direct sunlight.
Use within one year from the date of manufacture.
