Description

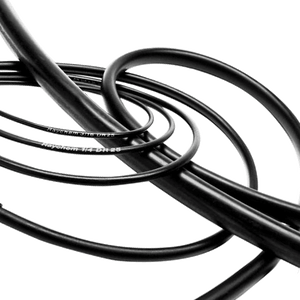

Raychem DR-25-3/8 is specially formulated for optimum high temperature fluid resistance, and long term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils. Particularly suitable as a jaketing material for military ground vehicle cables and harnesses. It is also ideally suited for the demands of motorsport cable harnesses. When used in conjunction with molded shapes and Resintech RT125 high performance adhesive, these products provide a complete cable harness system.
European specification with white printing (not US spec with yellow printing) is supplied.
We recommend HellermannTyton SE28 as a suitable alternative to Raychem DR25. Click here for more information.
| Inside Diameter | Recovered Wall Thickness ** | |
| Minimum Expanded as Supplied | Maximum Recovered After Heating | After Heating |
| 9.5 | 4.8 | 1.02±0.20 |
Note: all dimensions are in millimeters (mm)
** Wall thickness will be less if tubing recovery is restricted during shrinkage.
