Description

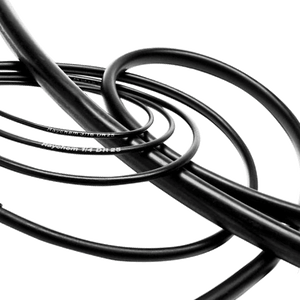

Raychem DR-25 is specially formulated for optimum high temperature fluid resistance, and long-term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils. Particularly suitable as a jacketing material for military ground vehicle cables and harnesses. It is also ideally suited for the demands of motorsport cable harnesses. When used in conjunction with heat-shrinkable molded shapes and Resintech RT125 high performance adhesive, these products provide a complete cable harness system.
European specification with white printing (not US spec with yellow printing) is supplied.
Master roll size is 60 metres.
| Inside Diameter | Recovered Wall Thickness ** | |
| Minimum Expanded as Supplied | Maximum Recovered After Heating | After Heating |
| 12.7 | 6.4 | 1.22 ±0.20 |
Note: all dimensions are in millimeters (mm)
** Wall thickness will be less if tubing recovery is restricted during shrinkage.
