Description
MoTeC Honda Civic FL5 Plug and Play Kit
The MoTeC Plug-In ECU Kit for the 11th generation FL5 Honda Civic Type R 2023 is a complete motorsport-grade replacement for the factory ECU, using existing wiring, sensors and fuel systems for easy installation.
With the M1 ECU at its core, this Plug-In ECU kit unlocks the true performance potential of the K20C turbo engine, with precise control over fuel delivery, ignition timing, throttle response and boost.
For builds pushing beyond factory limitations, the FL5 Plug-In ECU Kit supports optional secondary port injection, to build on the capability of the OE direct injection system. This opens the door to higher power targets, increased boost and reliable operation on high-ethanol fuel blends.
Integrated with original vehicle systems, the kit retains factory functionality while giving tuners the flexibility and programmable control needed for both immediate gains and long-term development.
This Kit supports OE ECU features, including:
- Push button start
- Selectable Drive Mode including Comfort, Sport, Individual and +R using OE controls
- Direct Injection with high pressure fuel pump control.
- Adaptive Cruise Control with OE functionality*
- Exhaust Sound Valve control, fully configurable by Drive Mode
- Engine speed matching (throttle blip) on downshifts
- Reverse gear lockout
- OE dash functionality including warnings

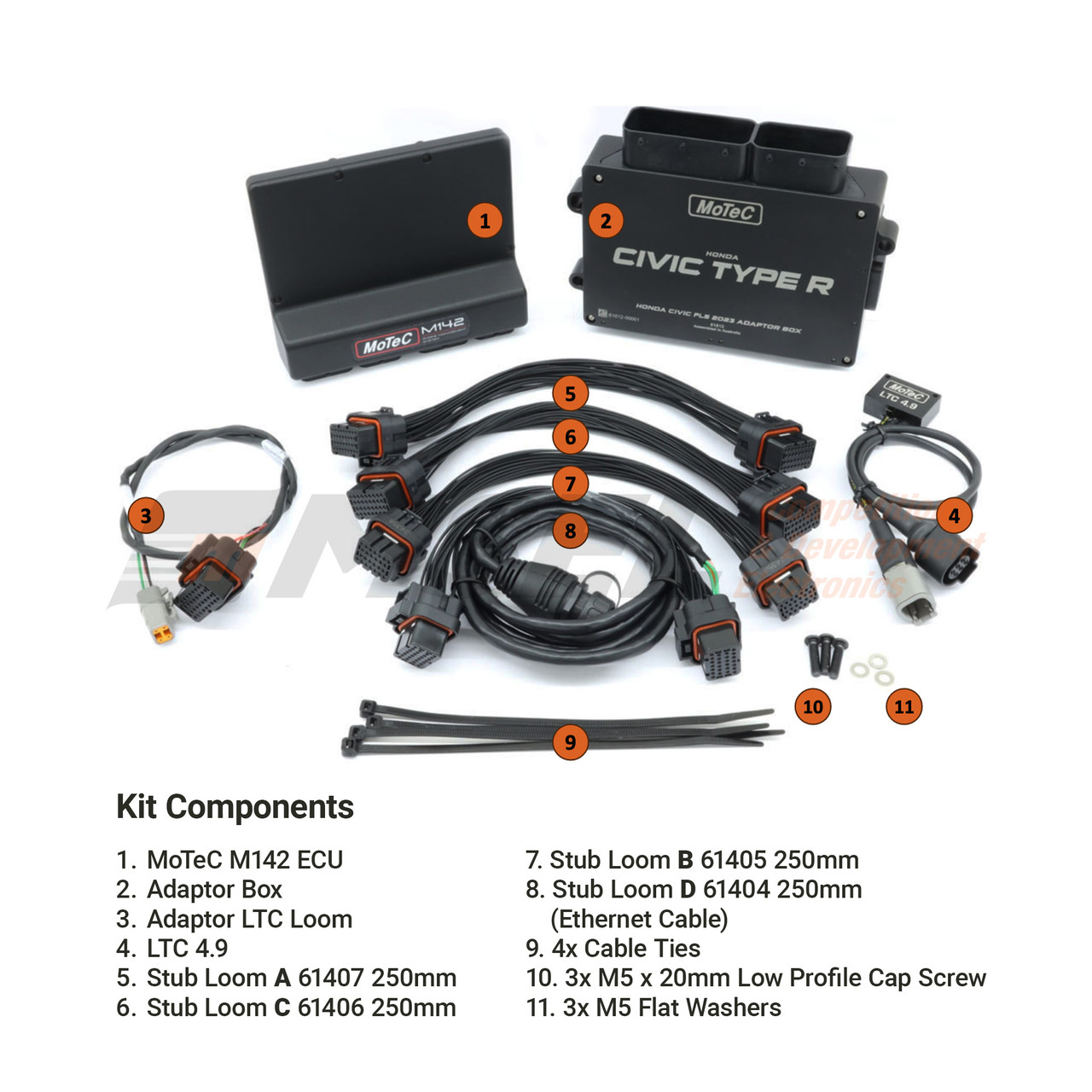

Kit Contents
- 13142M - M142 ECU MARINE
- 61611 - M142 HONDA CIVIC FL5 2023 ADAPTOR KIT
- 61612 - M142 HONDA CIVIC FL5 2023 ADAPTOR BOX
- 61404 - M1 ADAPTOR 250MM 26W KEY 1 STUB LOOM
- 61405 - M1 ADAPTOR 250MM 26W KEY 3 STUB LOOM
- 61406 - M1 ADAPTOR 250MM 34W KEY 1 STUB LOOM
- 61407 - M1 ADAPTOR 250MM 34W KEY 2 STUB LOOM
- 61430 - M1 ADAPTOR LTC LOOM
- 61300L - LTC - LSU LAMBDA TO CAN LONG LOOM
- 61613 - M142 HONDA CIVIC FL5 2023 MOUNTING KIT
- 3 x M5 Flat Washers
- 3 x M5 x 20mm Cap Socket Screws
- 4 x 4.8 x 200mm Cable Ties
Licence
-
23320 – M1 LIC - HONDA CIVIC TYPE R K20C
Vehicle Compatibility
This product includes CAN and LIN messaging for full OE vehicle integration. The Package caters for OE vehicle systems such as power steering, ABS, starting system and dashboard.
The following table shows compatible vehicles.
| Vehicle | Year | Badge | Comment |
|---|---|---|---|
| Honda Civic | 2023 On | Type R | K20C, Manual Transmission |
Note: This product is not suitable for other Honda Civic variants (e.g, 1.5L engine models)
