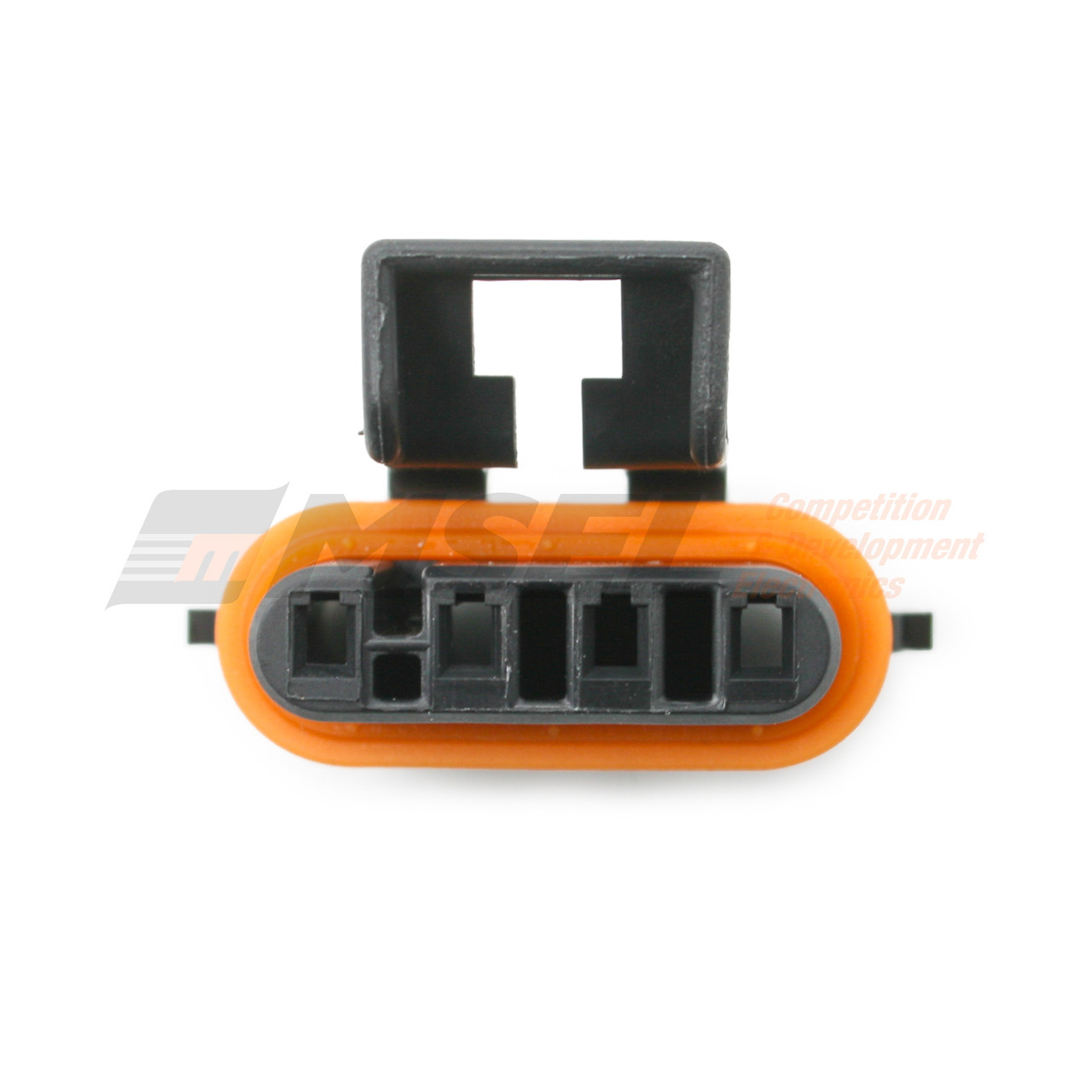

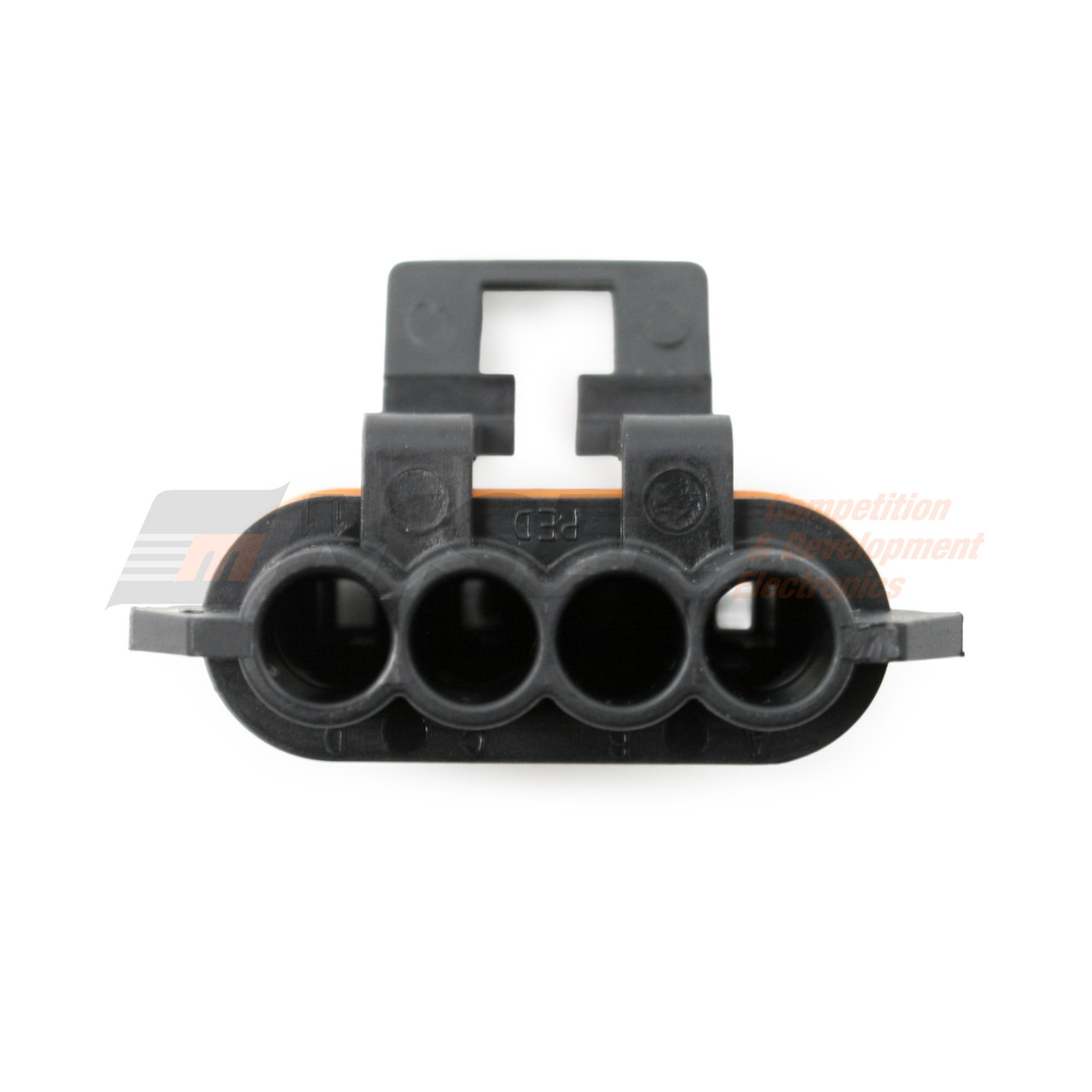

LS1 Ignition Coil Connector Kit with Seals and Terminals
Commonly used for GM LS1 Ignition Coils. Please check the product photo to ensure correct fitment before ordering.
Kit includes:
- 1 x Connector Housing
- 1 x TPA Lock
- 4 x Terminals
- 4 x Wire Seals
Key Features
| Sealing: |
Single Wire Sealed |
| Number of Ways: |
4 |
| Contact Size: |
1.5mm (15AWG) |
| Wire Size: |
22AWG-17AWG |
| Number of Rows: |
1 |
| Pitch: |
6.0mm |
| Numbered Cavities: |
Yes, Alphabetically |
| Contact Type: |
Socket, flat |
| Termination: |
Open barrel crimp |
| Lance Type: |
Terminal Lance |
| Seal Material: |
Silicone Rubber |
| Mounting Style: |
Free hanging |
| TPA: |
Yes |
| CPA: |
Yes |
| Temp Range[2]: |
-40 - 125°C |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise.
