Hellermann 1230-1-G Moulded T Boot

SKU: BOO1230-1-G

Hellermann 1230-1-G Moulded T Boot
Excl. GST (Incl. GST)
$65.30 ($75.09)

Description:

The HellermannTyton 1230-1-G is a heat-shrinkable moulded T boot for sealing and protecting a three-way branch in a wiring harness. It is the non-glued equivalent of the Raychem 301A028-25-0 T boot.

Specifications

  • Manufacturer: HellermannTyton
  • Part number: 1230-1-G
  • Type: moulded T boot, heat-shrinkable, non-glued
  • Flexibility: semi-rigid
  • Equivalent: Raychem 301A028-25-0
  • Leg diameter, expanded as supplied (ØH, ØJ, ØK): 20 mm (0.79 in) minimum
  • Leg diameter, fully recovered (ØH, ØJ, ØK): 10.2 mm (0.40 in) maximum
  • Overall length (P): 90 mm (3.54 in) ±10%
  • Main leg end to branch centreline (R): 45 mm (1.77 in) ±10%
  • Wall thickness, main legs (HW, JW): 2 mm (0.08 in) ±30%

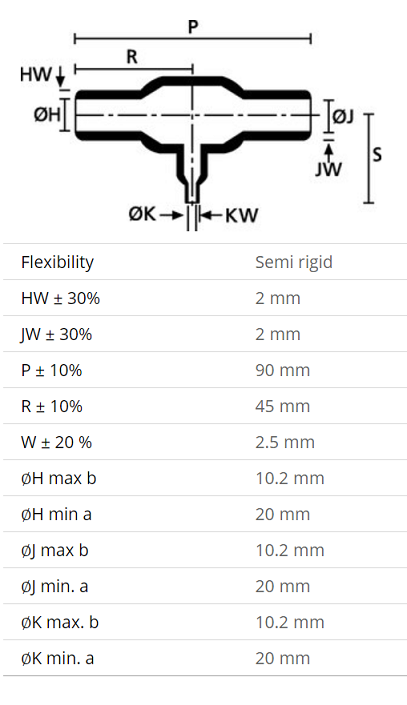

According to the 1230-1-G dimension table, all three legs share the same expanded and recovered diameters.

1230-1-G_A

Sizing

Each leg shrinks from 20 mm expanded to 10.2 mm or less when heated.

Fitting

This boot is not pre-glued; Resintech RT125 glue is recommended (sold separately).
