Hellermann 1202-1-G Moulded T Boot

SKU: BOO1202-1-G

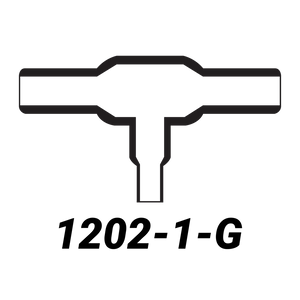

Hellermann 1202-1-G Moulded T Boot
Excl. GST (Incl. GST)
$38.21 ($43.94)

Description:

The HellermannTyton 1202-1-G is a heat-shrinkable moulded T boot for sealing and protecting a three-way branch in a wiring harness. It is the non-glued equivalent of the Raychem 301A022-25-0 T boot.

Specifications

  • Manufacturer: HellermannTyton
  • Part number: 1202-1-G
  • Type: Moulded T boot, heat-shrinkable, non-glued
  • Equivalent: Raychem 301A022-25-0
  • Expanded leg diameter, as supplied (øh, øj, øk): 13 mm (0.51 in) minimum
  • Recovered leg diameter (øH, øJ, øK): 7 mm (0.28 in) maximum
  • Recovered body diameter (øM): 10 mm (0.39 in) maximum
  • Recovered overall length (P): 59 mm (2.32 in) ±10%
  • Recovered overall height (F): 37 mm (1.46 in) ±15%
  • Recovered leg end to branch centreline (R): 29.5 mm (1.16 in) ±10%
  • Recovered wall thickness at each leg end (Hw, Jw, Kw): 1.5 mm (0.06 in) ±30%

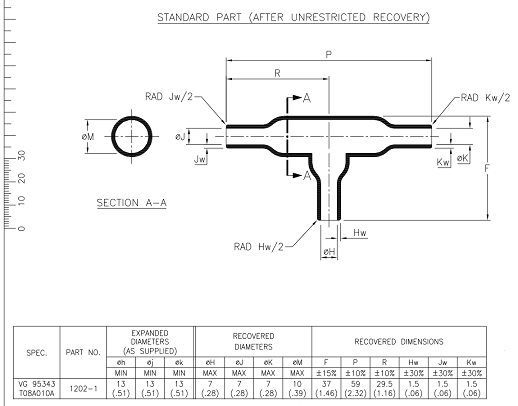

According to the 1202-1-G dimension drawing, recovered dimensions apply after unrestricted recovery.

BOO1202-1-G_A

Sizing

Each leg shrinks from 13 mm expanded to 7 mm or less when heated.
