Description
Deutsch DTM 6-Way Connector Kit No Heat Shrink Gland

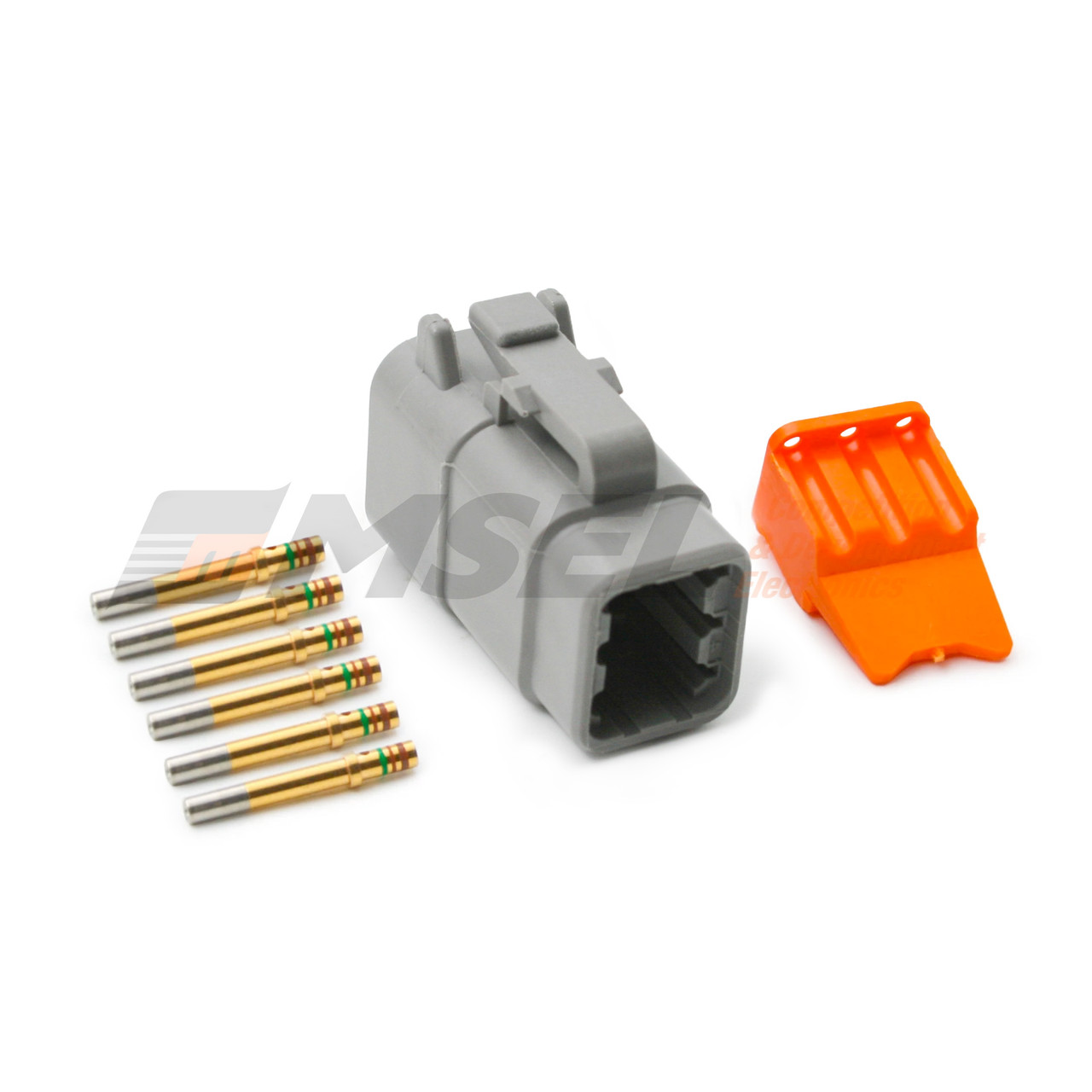

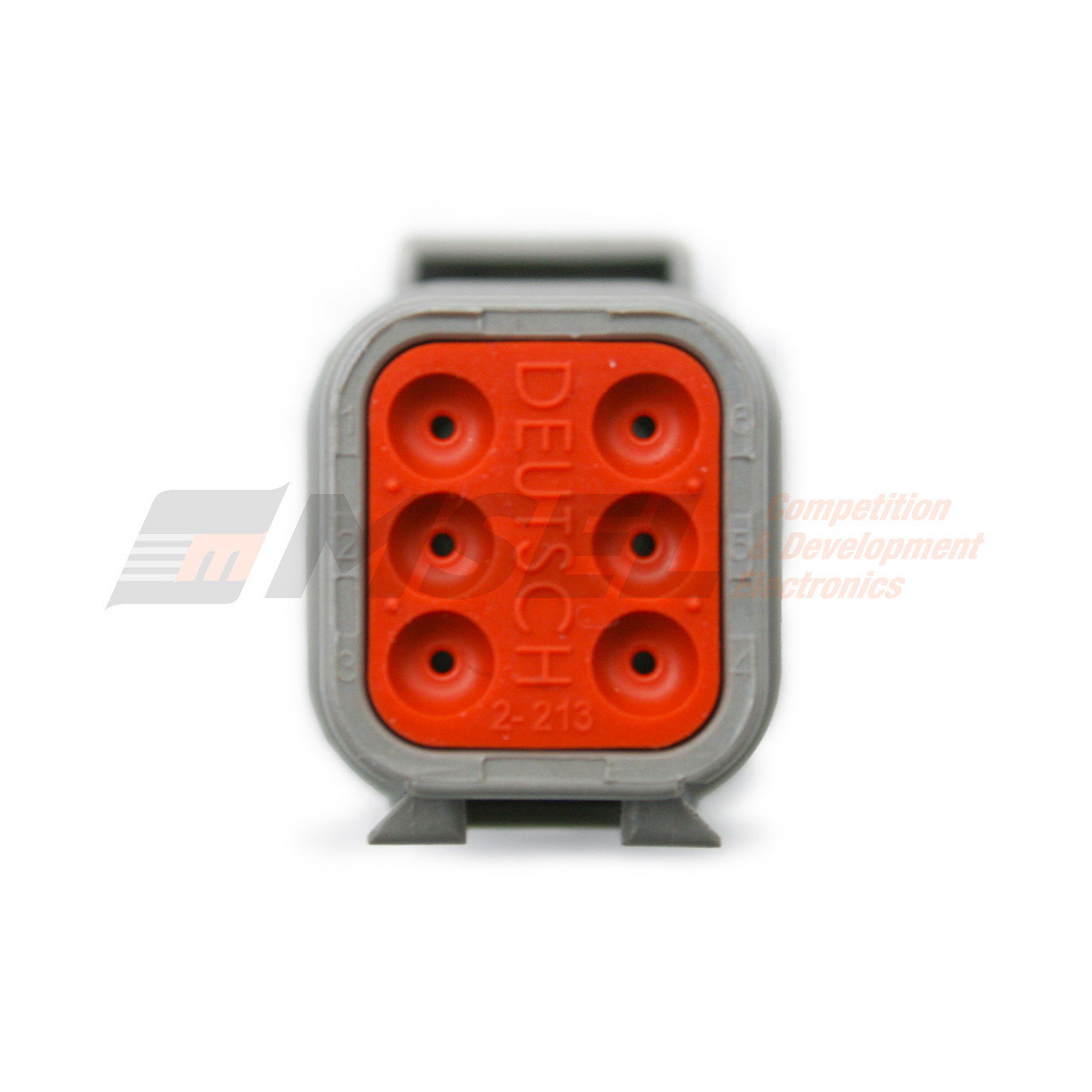

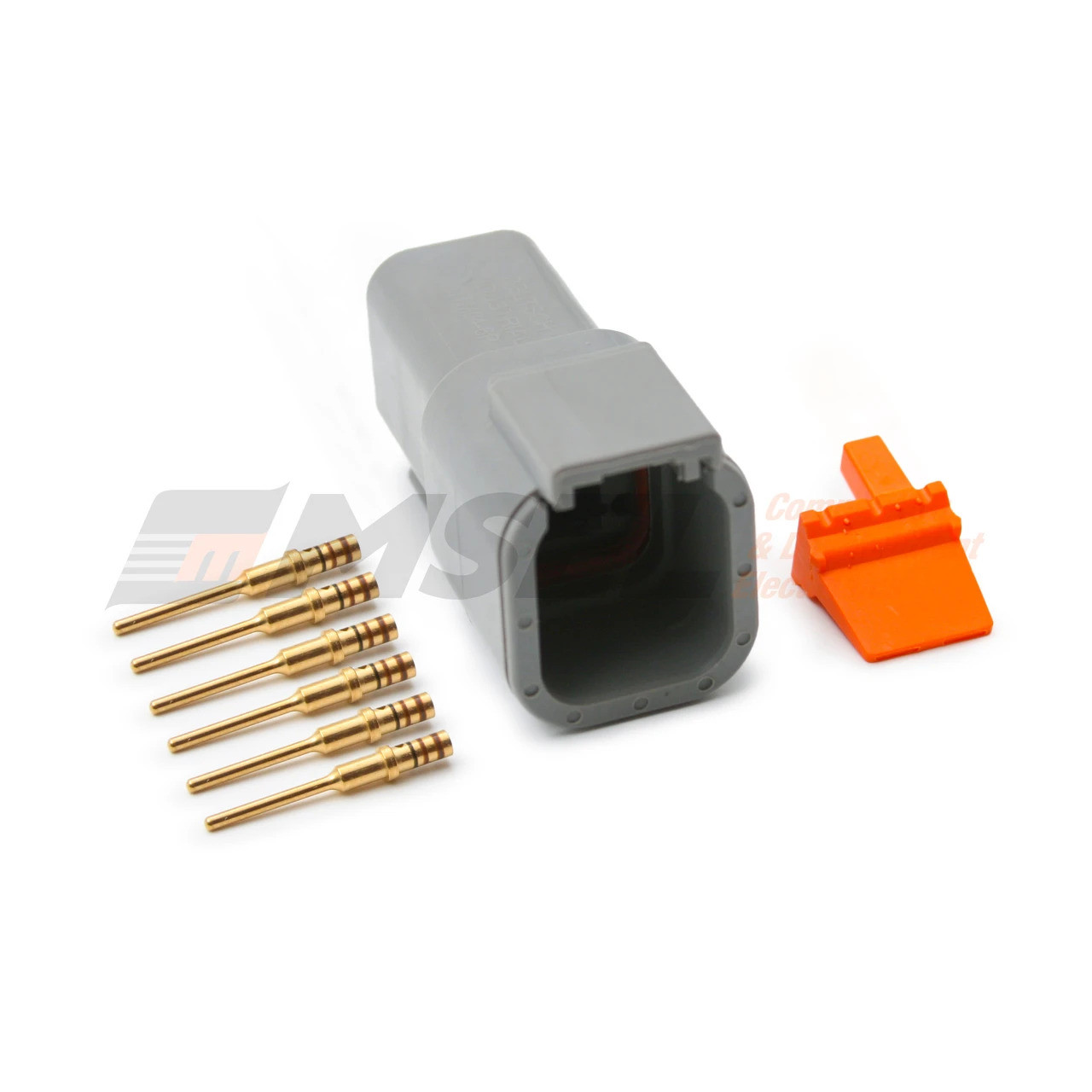

The Deutsch DTM 6-Way Connector Kit is a complete 6-position DTM connection. The kit comes with a DTM06-6S plug (Without Heat Shrink Gland), DTM04-6P receptacle, WM-6S and WM-6P wedges, and 12 size 20 solid contacts (6 pin, 6 socket). The DTM 6-way is a multi-position connector for low-current motorsport wiring.
Kit Includes:
- 1x Connector Plug Housing (No Heat Shrink Gland)
- 1x Connector Receptacle Housing
- 6x Gold plated solid formed pins
- 6x Gold plated solid formed sockets
- 1x Lock for Plug
- 1x Lock for Receptacle
According to TE Connectivity (Deutsch) specifications, the DTM series is rated to 7.5A per contact at up to 250V, sealed to IP67/IP68, and operates from -55°C to +125°C; making it a standout sealed connector for low-current signal wiring in motorsport, marine, and heavy-duty automotive applications.
Key Value Features
Each half is available separately - refer to the Recommended Product options below
