Description

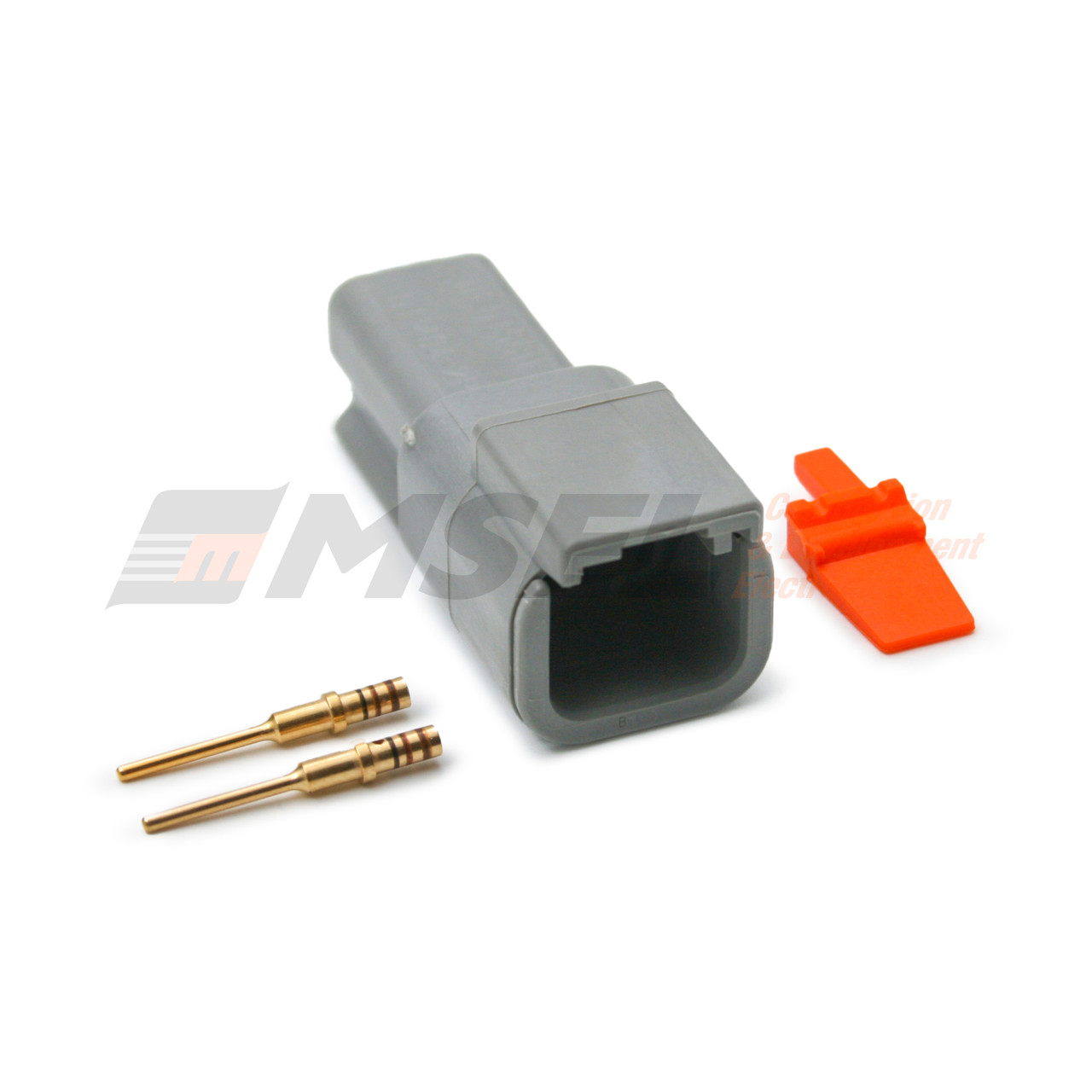

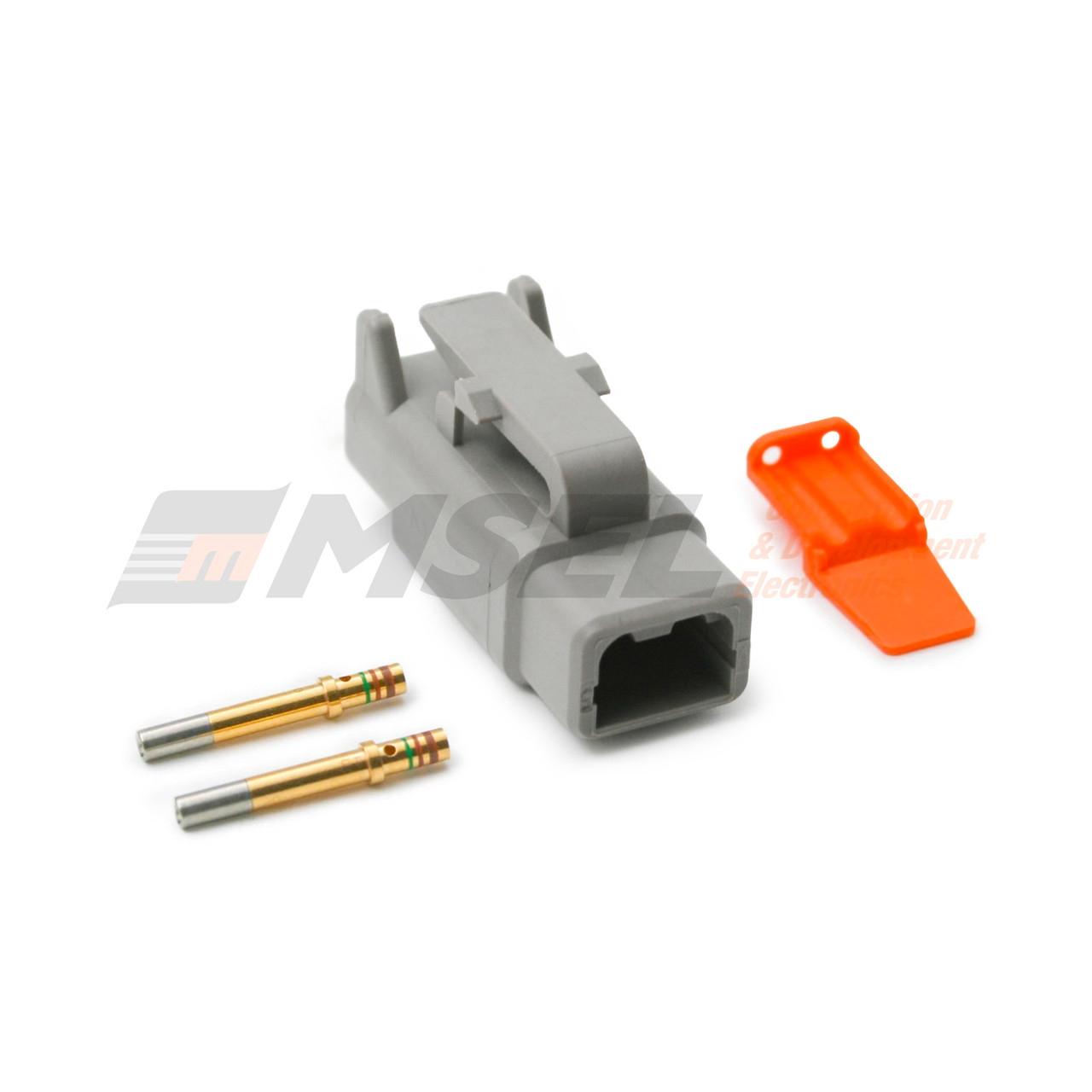

Deutsch DTM 2-Way Connector Kit No Heat Shrink Gland

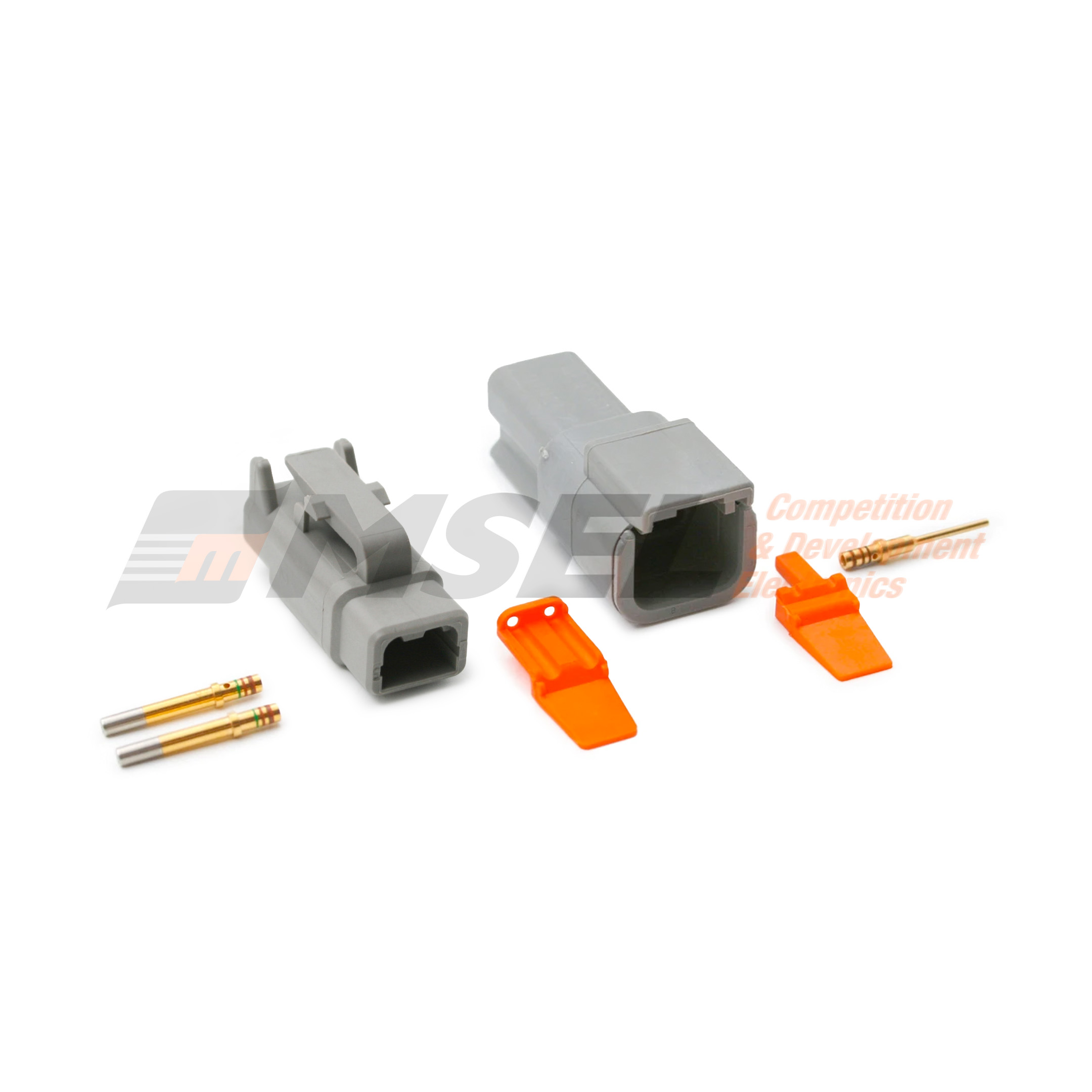

The Deutsch DTM 2-Way Connector Kit is a complete 2-position DTM connection. The kit comes with a DTM06-2S plug (Without Heat Shrink Gland), DTM04-2P receptacle, WM-2S and WM-2P wedges, and 4 size 20 solid contacts (2 pin, 2 socket). The DTM 2-way is a multi-position connector for low-current motorsport wiring.
Kit Includes:
- 1x Connector Plug Housing (No Heat Shrink Gland)
- 1x Connector Receptacle Housing
- 2x Gold plated solid formed pins
- 2x Gold plated solid formed sockets
- 1x Lock for Plug (optional black wedge available)
- 1x Lock for Receptacle (optional black wedge available)
According to TE Connectivity (Deutsch) specifications, the DTM series is rated to 7.5A per contact at up to 250V, sealed to IP67/IP68, and operates from -55°C to +125°C; making it a standout sealed connector for low-current signal wiring in motorsport, marine, and heavy-duty automotive applications.
Key Value Features
Each half is available separately - refer to the Recommended Product options below

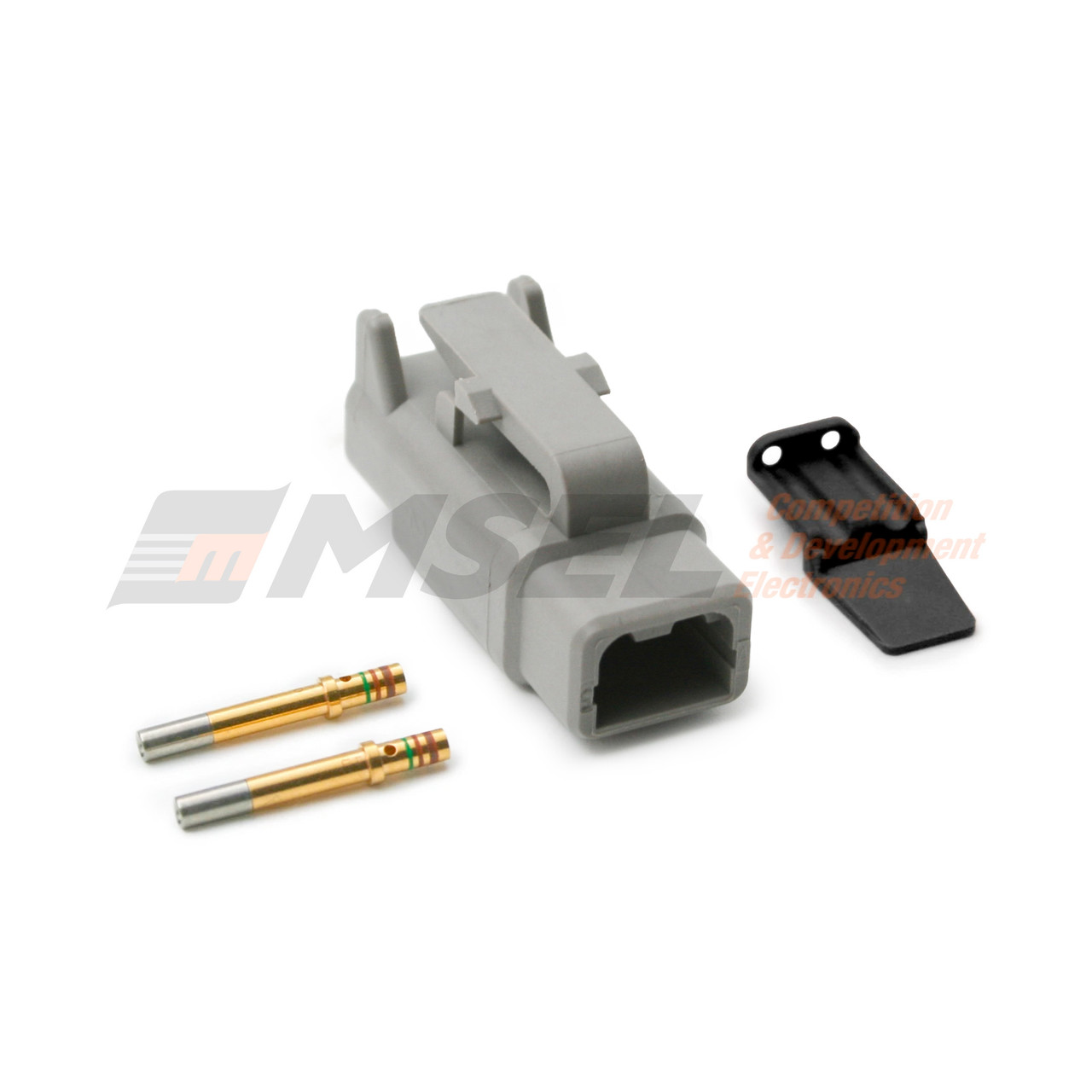

Please note the the "B" black option wedges stop the connector mating with a connector with an orange wedge. This is a great option when you have two or more of the same connectors close to each other and you do not want someone mating the wrong pair.
