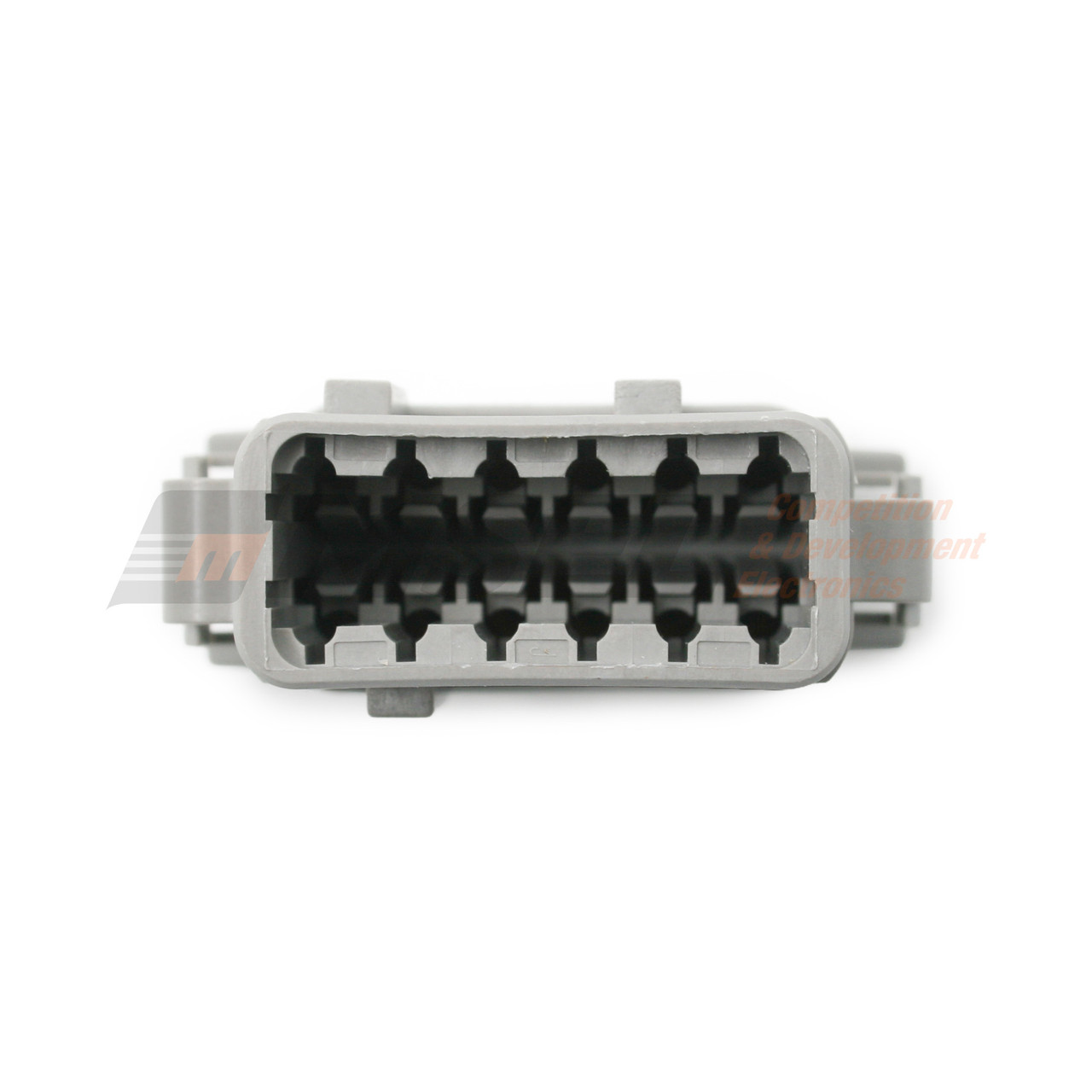

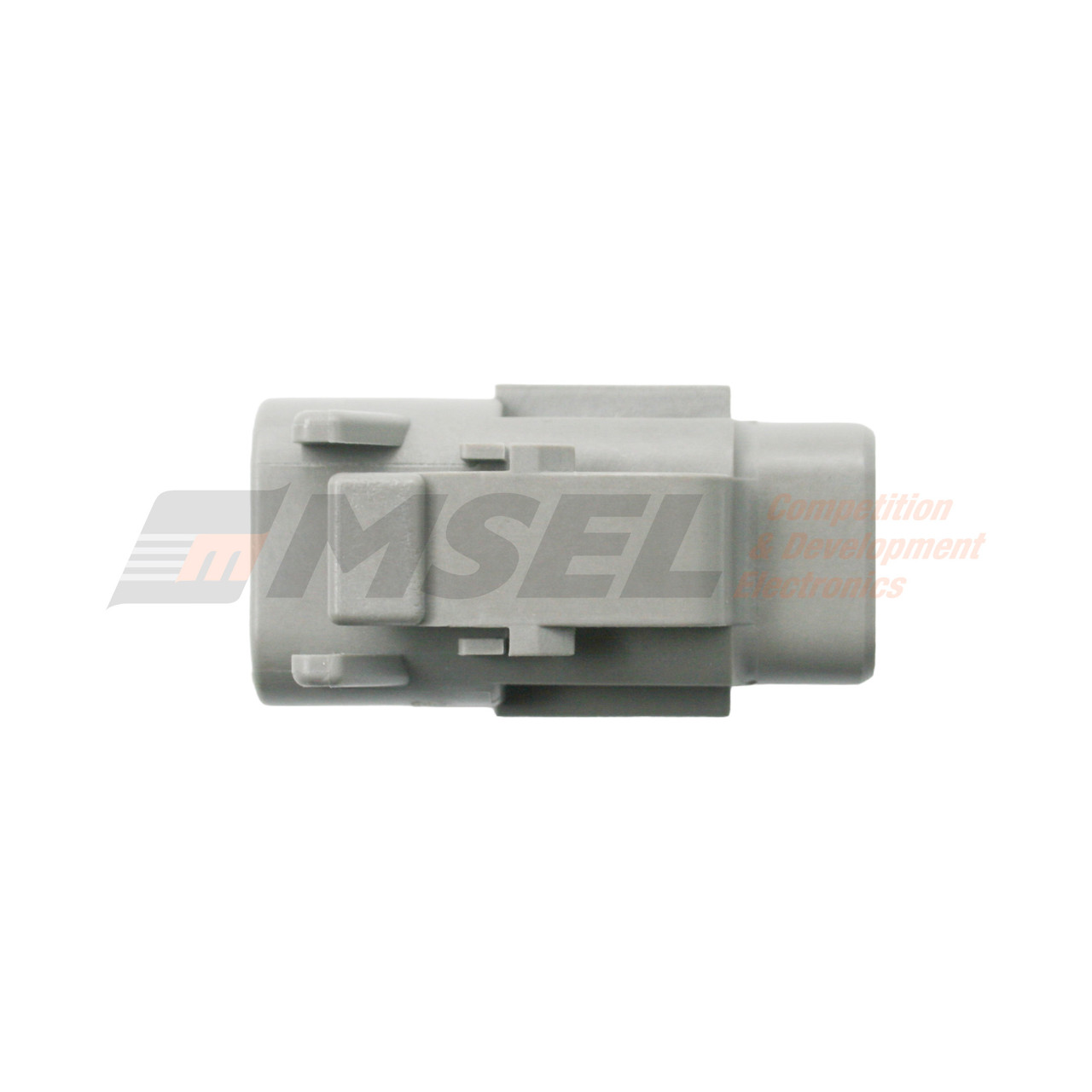

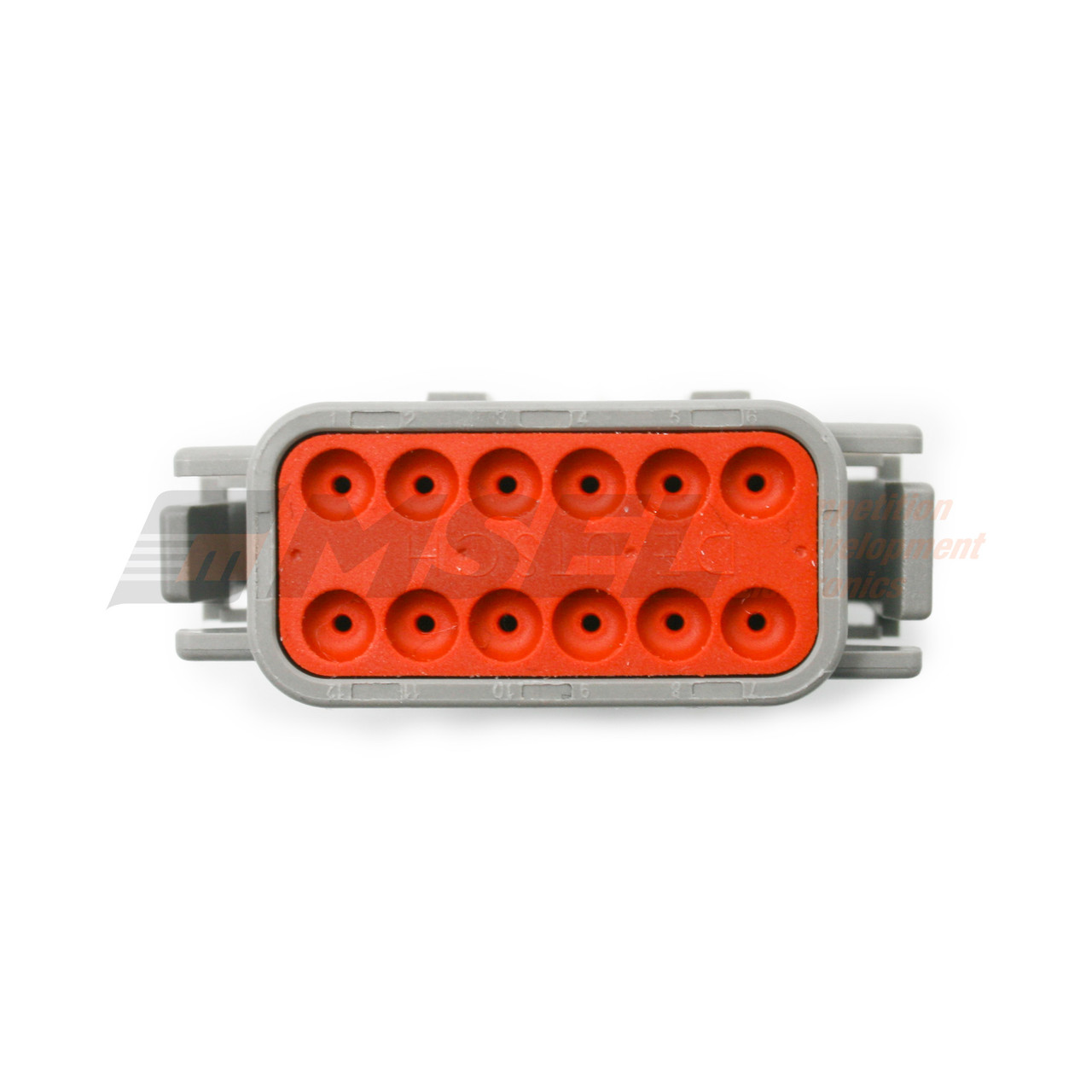

Deutsch DTM 12-Way Plug Kit No Heat Shrink Gland
The Deutsch DTM 12-Way Plug Kit is the "female" half of a DTM 12-position connection. The kit comes with a DTM06-12SA plug (Without Heat Shrink Gland), WM-12S Wedge, and 12 size 20 solid contacts (12 sockets). The DTM 12-Way is a multi-position connector for low-current motorsport wiring. Please note this connector has No Heat Shrink Gland.
Kit Includes:
- 1x Connector Plug Housing (No Heat Shrink Gland)
- 12x Gold plated solid formed sockets
- 1x Lock for Plug
See related products for full kit containing both sides of the connector
According to TE Connectivity (Deutsch) specifications, the DTM series is rated to 7.5A per contact at up to 250V, sealed to IP67/IP68, and operates from -55°C to +125°C; making it a standout sealed connector for low-current signal wiring in motorsport, marine, and heavy-duty automotive applications.
