Deutsch DT 3-Way Receptacle Kit with Solid Pins

SKU:
CONDT04-3PK-14
Quantity Unit Price (Inc GST)
1 + $6.58 ($7.57)
5 + $5.26 ($6.05)
10 + $4.67 ($5.37)
20 + $4.14 ($4.76)
100 + $3.67 ($4.22)

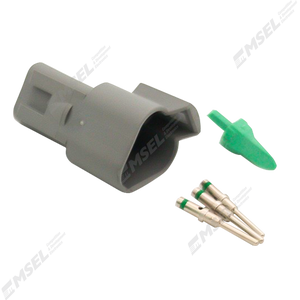

  • Deutsch DT 3-Way Receptacle Kit with Solid Pins. CONDT04-3PK.

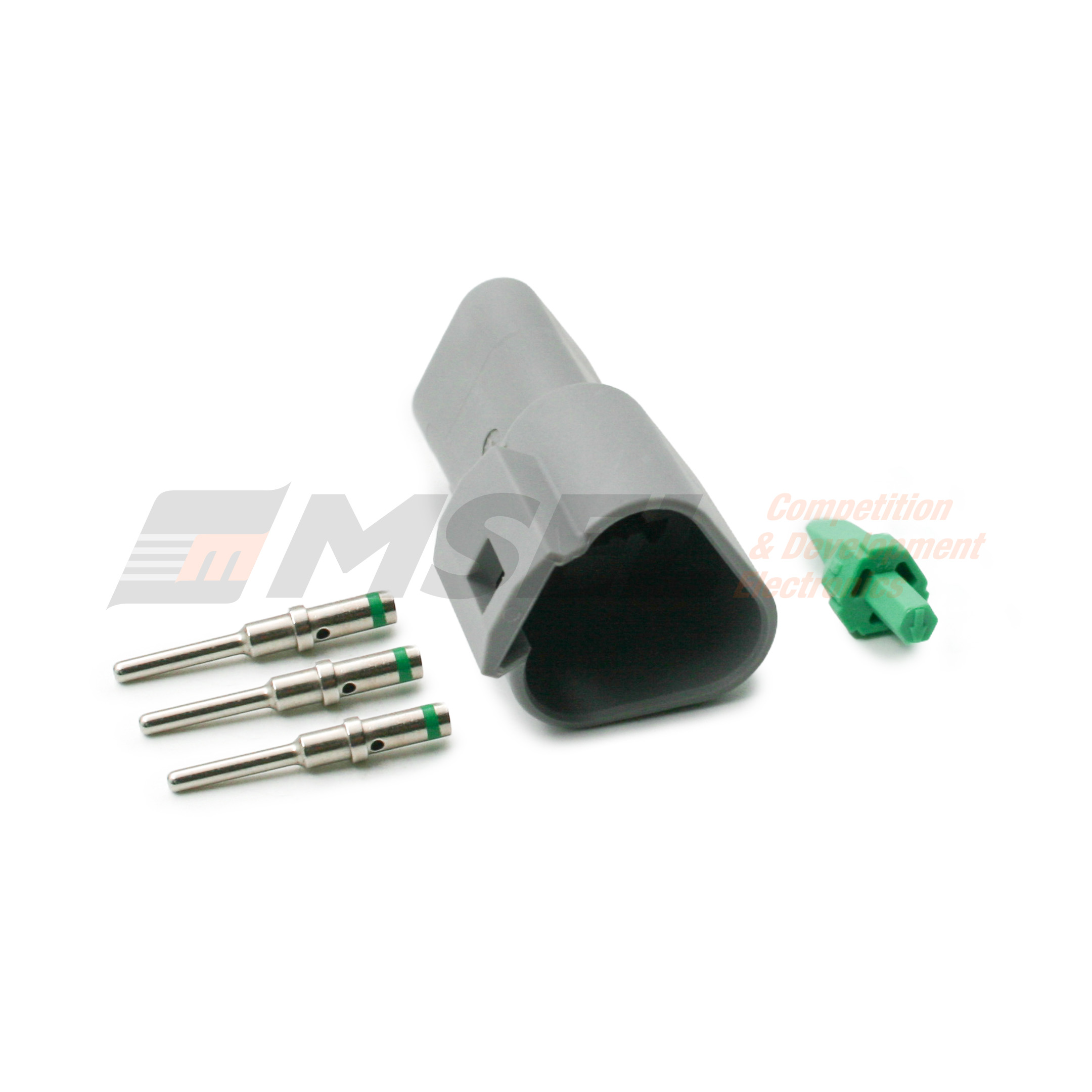

  • Deutsch DT 3-Way Receptacle Kit with Solid Pins. CONDT04-3PK.

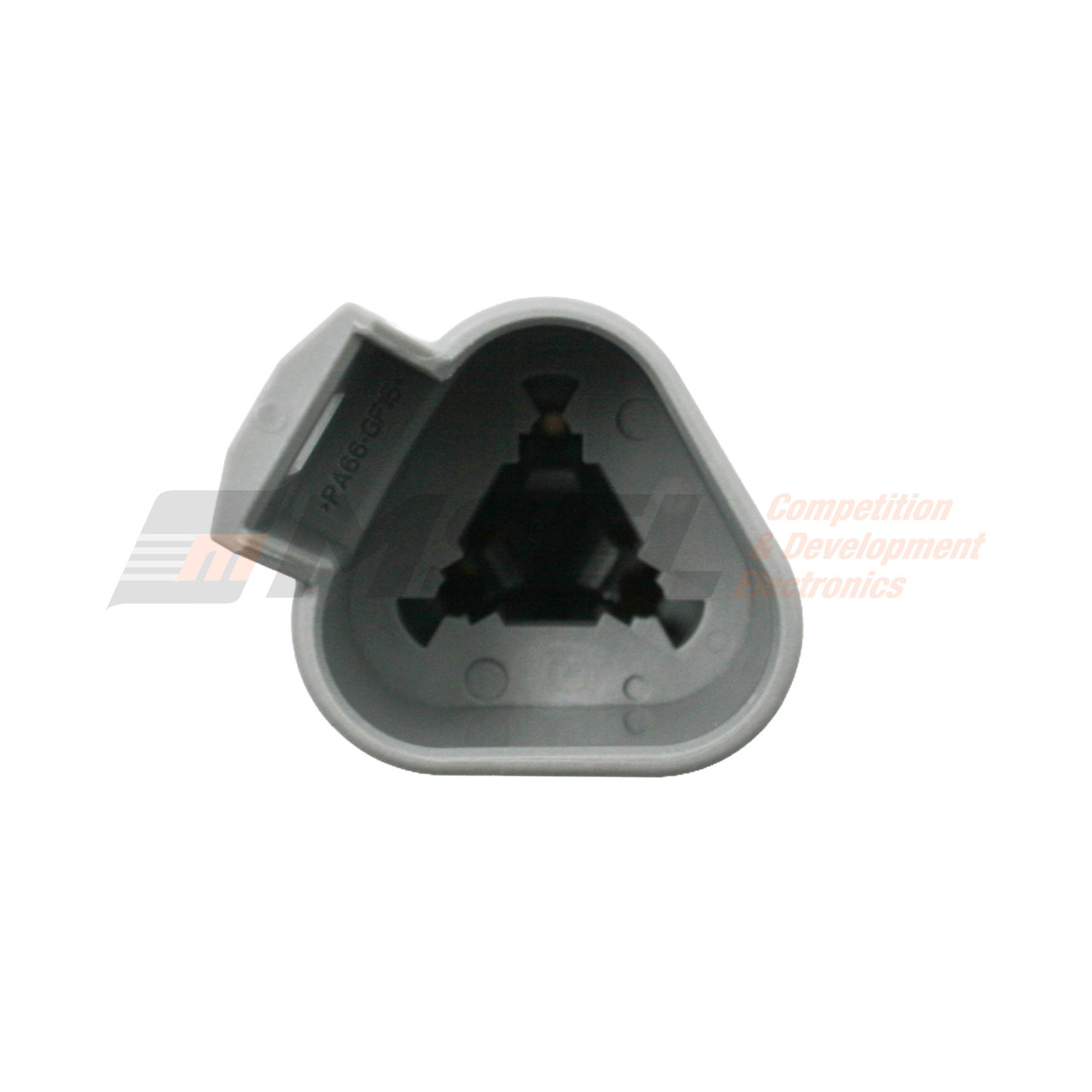

  • Deutsch DT 3-Way Receptacle Front View. CONDT04-3PK.
  • Deutsch DT 3-Way Receptacle Back View. CONDT04-3PK.
  • Deutsch DT 3-Way Receptacle Side View. CONDT04-3PK.
  • Deutsch DT 3-Way Receptacle Kit with Solid Pins
$6.58 ($7.57) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing. Shipping calculated at checkout.

Description

Deutsch DT 3-Way Receptacle Kit with Solid Pins

Kit Includes:

  • 1x Connector Receptacle Housing
  • 3x Solid formed sockets
  • 1x Locking Wedge for Receptacle

Suited for motorsport harness building. The Deutsch DT 3-Way Receptacle-Side Kit supplies the fixed-end half of a Deutsch DT 3-way connection (the DT04-3P Receptacle housing), W3P wedge, and three size 14 or 16 socket contacts. MSEL also stocks Blue, Brown, and Green colour variants.

According to TE Connectivity (Deutsch) specifications, the DT series is rated to 13A per contact at up to 250V, sealed to IP67/IP68, and operates from -55°C to +125°C, making it the standard sealed connector across motorsport, marine, agricultural, and heavy-duty automotive wiring.

See related products for full kit containing both sides of the connector.

Fulfilled from our Auckland warehouse. Trading since 2004. Ships to New Zealand and worldwide.
