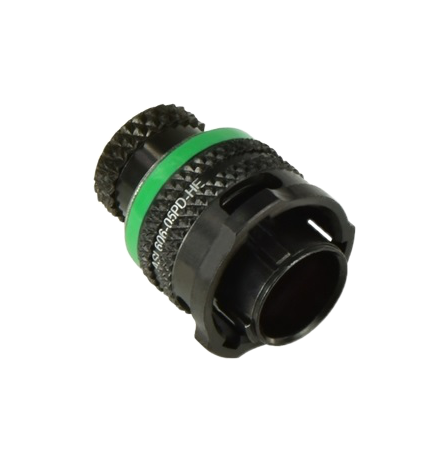

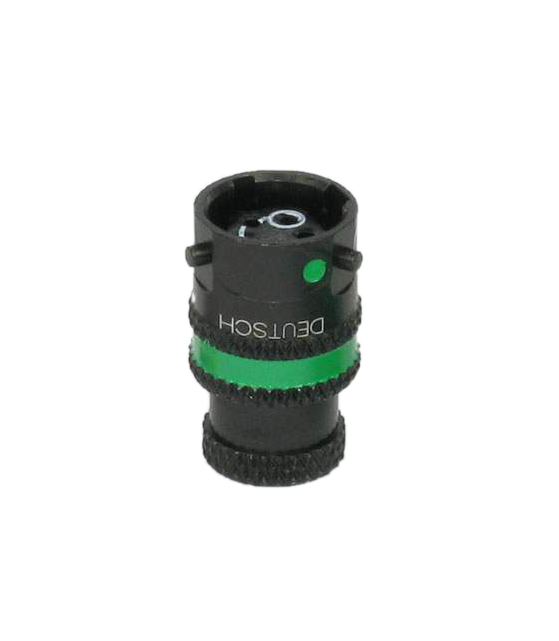

Deutsch Autosport Lite 5-Way Plug Connector with size 23 Pins - Green
SKU: CONASL60605PD
Deutsch Autosport Lite 5-Way Plug Connector with size 23 Pins - Green
SKU: CONASL60605PD
Summary:
Autosport Lite 5-Way Plug Connector size 23 Pins - Green Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page. Feature Specification Not…
Excl. GST (Incl. GST)
$97.35 ($111.95)
Buy in Bulk and Save!
Description:
Autosport Lite 5-Way Plug Connector size 23 Pins - Green
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 60605PD | |
| Connector Type | Plug | |
| Shell Size | 06 | |
| Orientation | Green (D) | Will only mate with green connectors |
| Number of Contacts | 5 | |
| Contact Size | 23 | |
| Contact Type | Pin | Male |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOC1413 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |

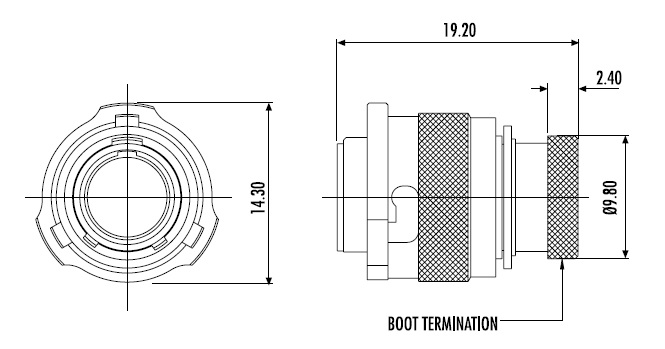

Note: all dimensions are in millimeters (mm)
