Description

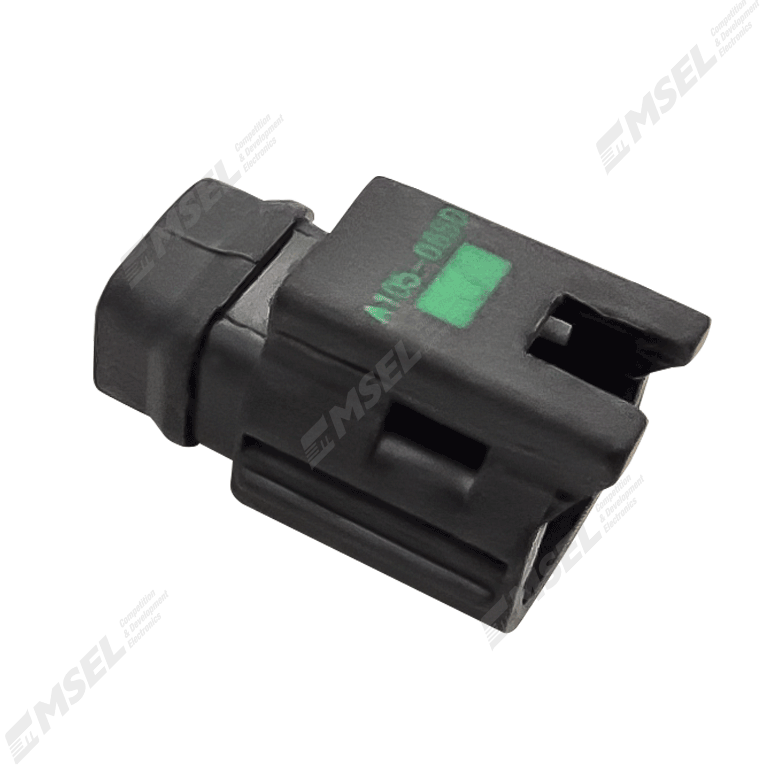

Deutsch Autosport Composite ASC105-06SD receptable with green keyway and sockets
Made as one unit in a rugged military approved thermoplastic housing, the AS composite connector is extremely resistant to vibration and corrosion.
- 6 size #22 terminals (22awg to 26awg wire)
- gold plated crimp terminals
- ultra light weight (2.5g ligher than ASL)
- heat shrink gland integrated onto the back of the connector housing
- environmentally sealed to IP67
- cable tie slot for security
- close stacking possible with locating sides and bottom
Note that connectors are sold in halves so the mating half needs to purchased seperately.
