Description

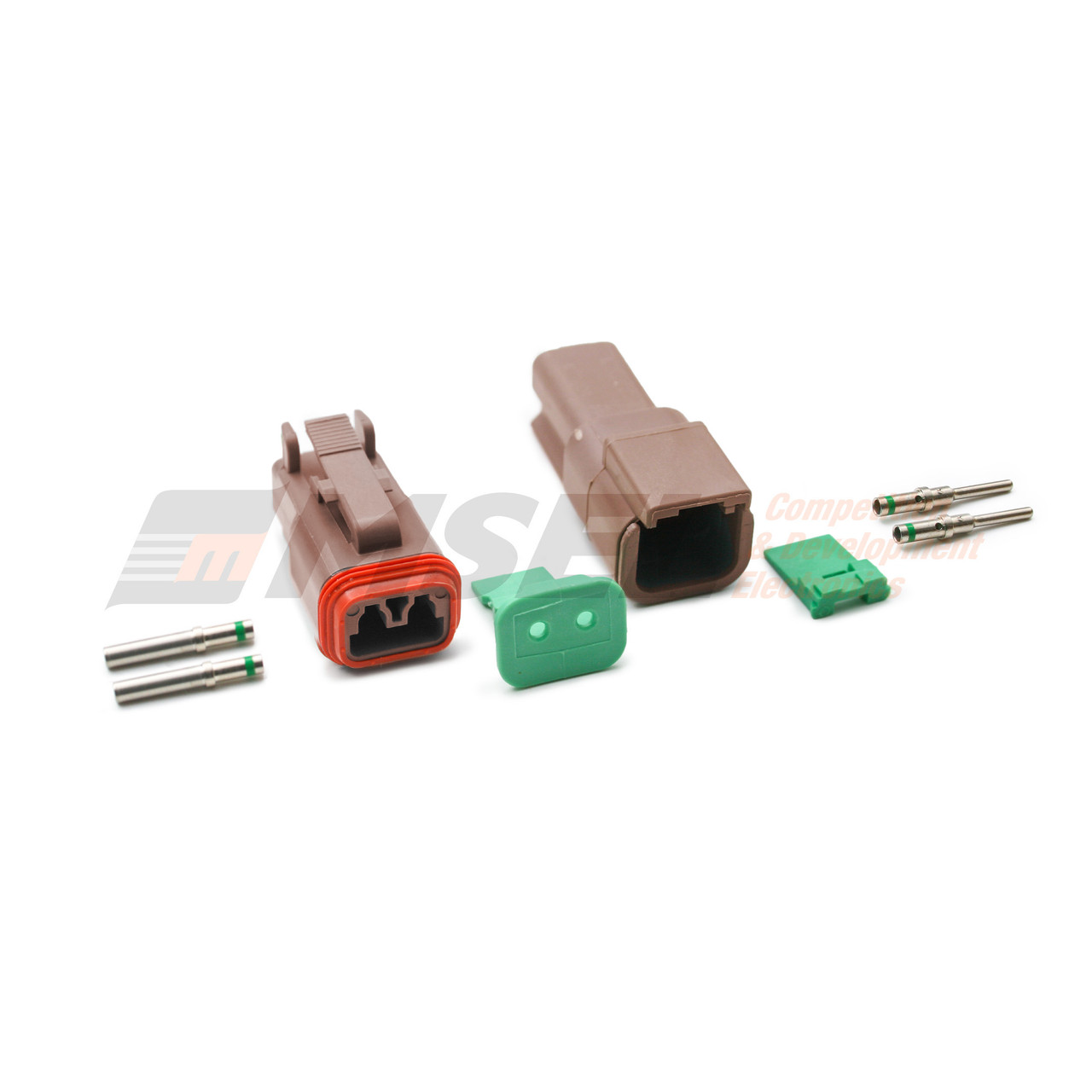

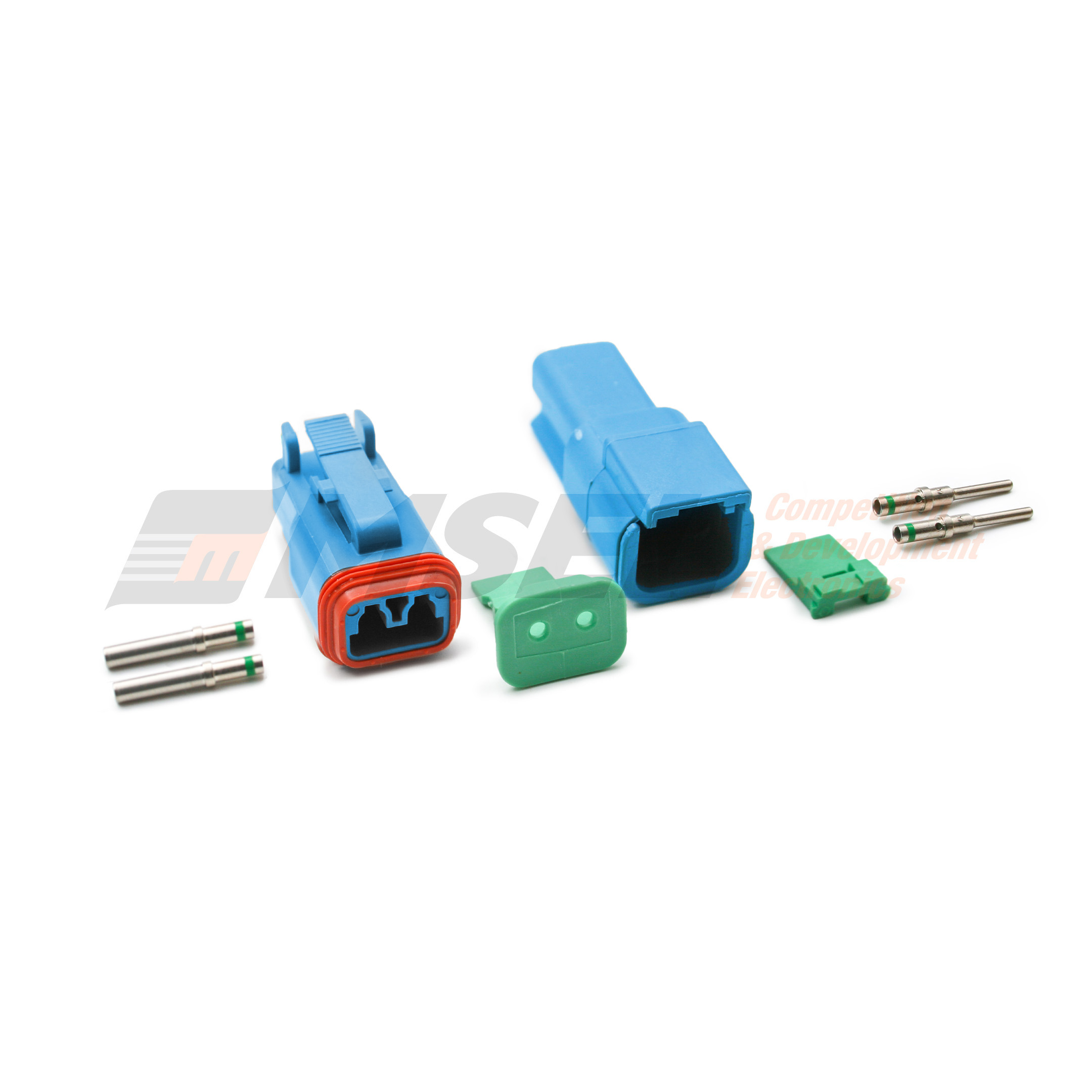

Colour Deutsch DT 2-Way Connector Kit
Colour Deutsch DT 2-way connector kits are supplied in Brown, Blue, and Green variations. Each kit contains the 2-way receptacle (DT04-2P-TN0X), 2-way plug (DT06-2S-TN0X), matching wedges (W2P and W2S), two pins, and two sockets. Available in size 14 and 16 contacts.
Kit Includes:
- 1x Colour Connector Plug Housing
- 1x Colour Connector Receptacle Housing
- 2x Solid formed sockets
- 2x Solid formed pins
- 1x Lock for Plug
- 1x Lock for Receptacle
Suited to motorsport harness building where colour-coded identification reduces mating errors.
The Coloured Deutsch DT 2-Way Connector Kit packages a complete 2-position DT connection; receptacle, plug, two wedges, and four size 14 or 16 contacts (two pin, two socket). MSEL stocks in Blue, Brown, and Green colour variants. Colour-coded DT housings are used to visually identify circuits in motorsport and industrial wiring harnesses, reducing the risk of cross-connection during build, service, and field repair.
According to TE Connectivity (Deutsch) specifications, the DT series is rated to 13A per contact at up to 250V, sealed to IP67/IP68, and operates from −55°C to +125°C, making it the standard sealed connector across motorsport, marine, agricultural, and heavy-duty automotive wiring.
