Autosport Lite 5-Way Inline Receptacle Connector with Size 23 Pins - Red
SKU: CONASL10605PN
Autosport Lite 5-Way Inline Receptacle Connector with Size 23 Pins - Red
SKU: CONASL10605PN
Summary:
Shell size 06 Autosport Lite inline receptacle with a zinc-plated aluminium housing. The red keyway means it only mates with red-keyed Autosport connectors. Contacts are rated to 3 amps each and come with an insert/removal tool.
Excl. GST (Incl. GST)
$112.12 ($128.94)
Buy in Bulk and Save!
Description:

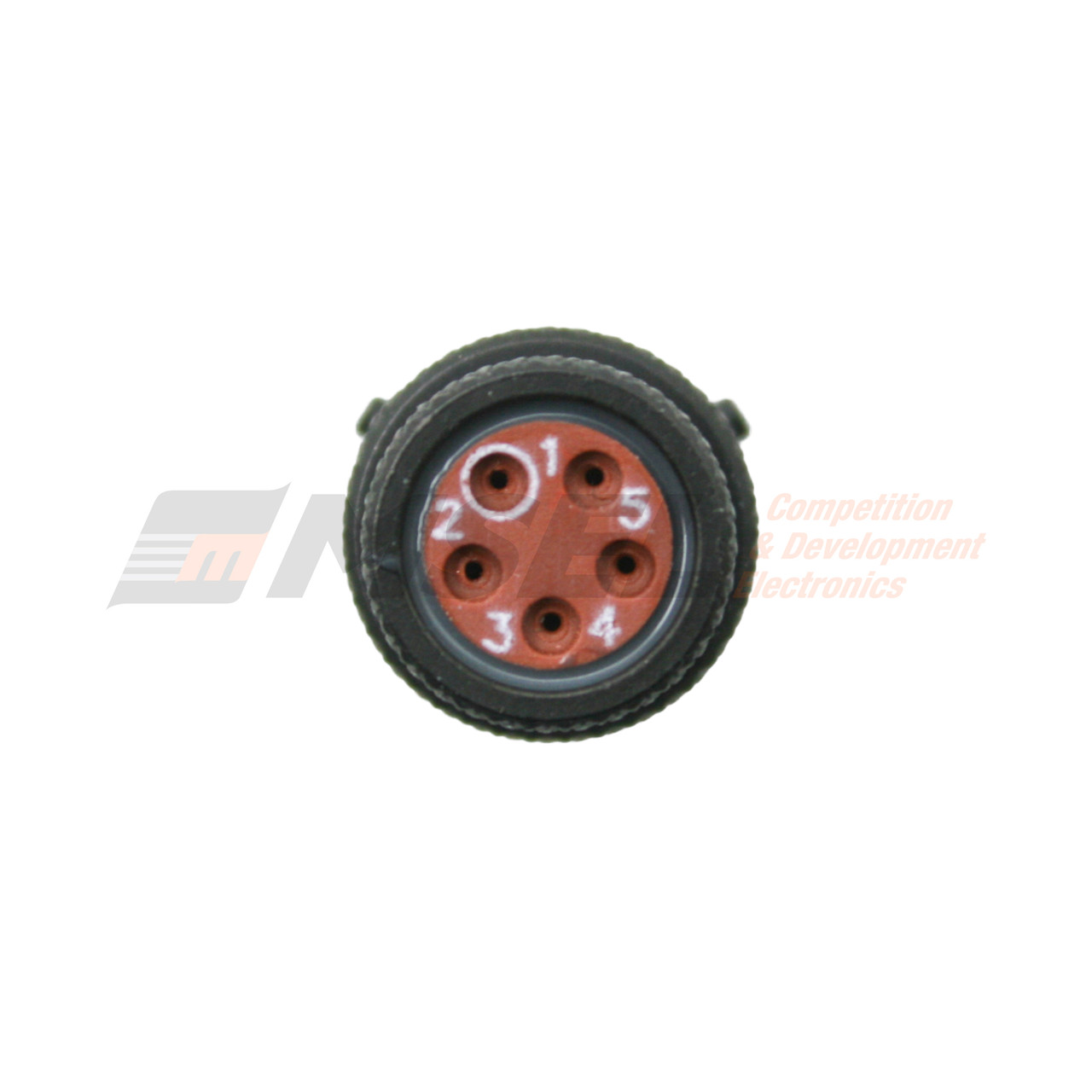

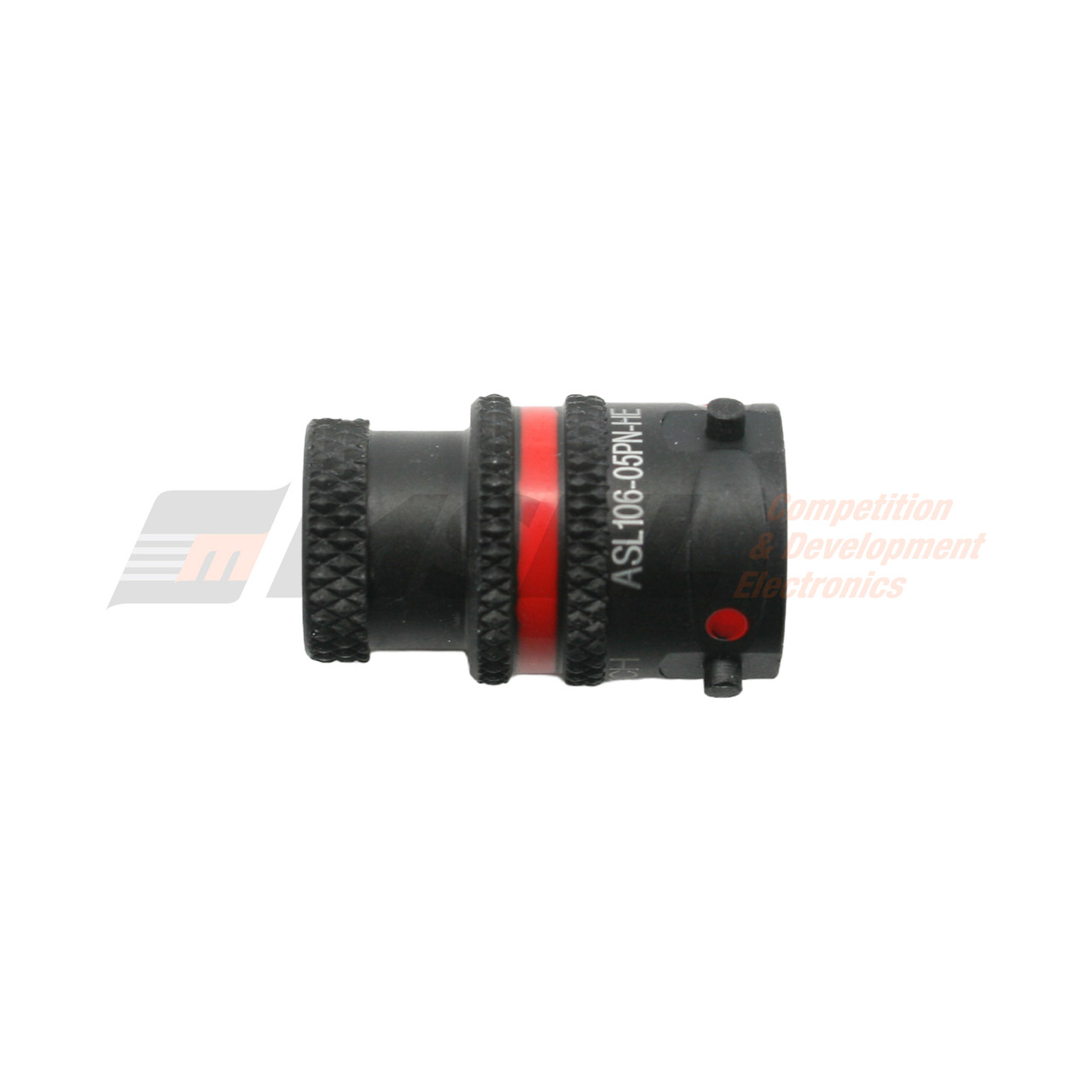

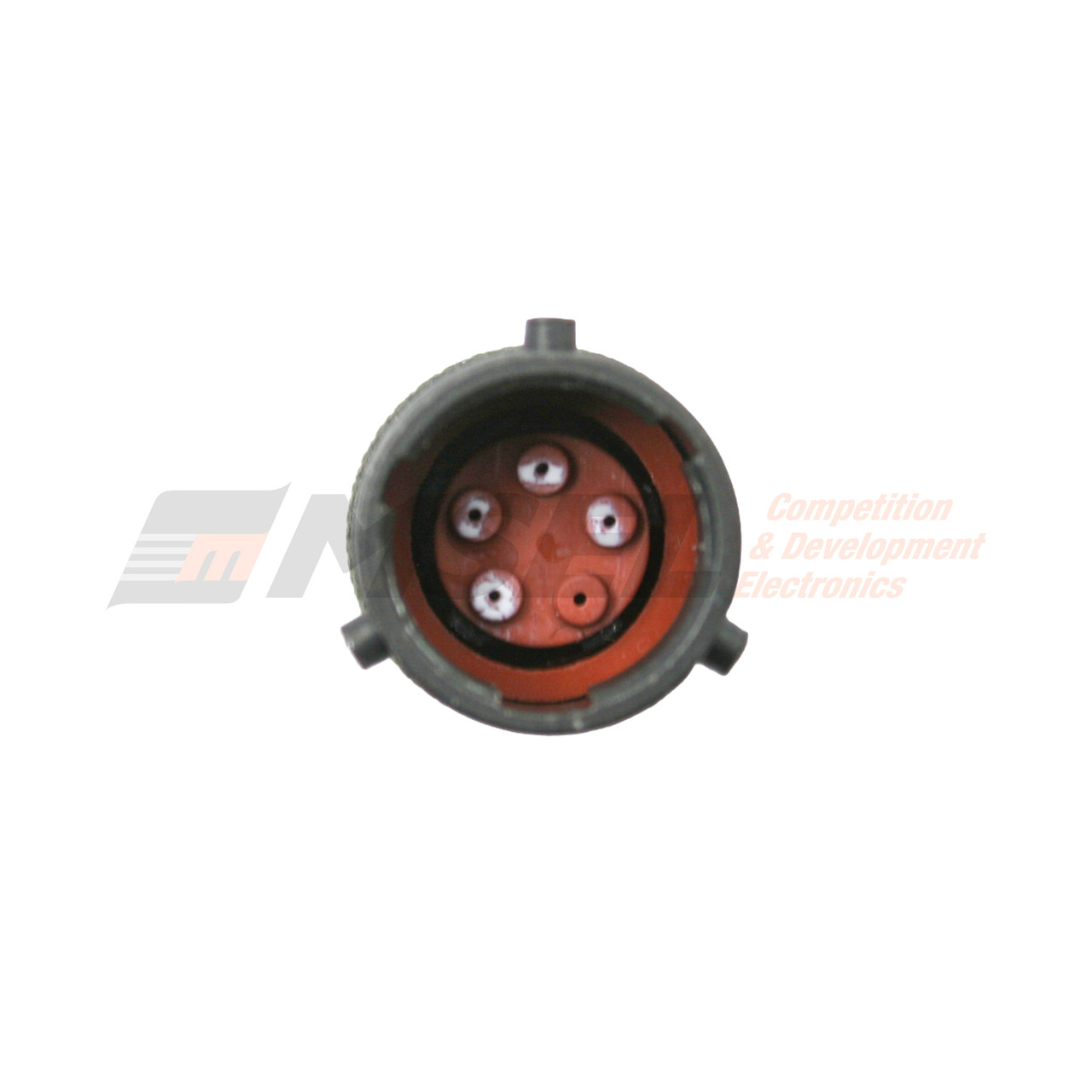

Autosport Lite 5-Way Inline Receptacle with size 23 Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 10605PN | |
| Connector Type | Receptacle | |
| Shell Size |
06 |
|
| Orientation | Red (N) | Will only mate with Red connectors |
| Number of Contacts | 5 | |
| Contact Size | 23 | |
| Contact Type | Pin | Male |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOC1414 | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
Note: all dimensions are in millimeters (mm)
