Autosport Lite 5-Way Bulkhead Connector with Size 23 Pins - Yellow
SKU: CONASL00605PA
Autosport Lite 5-Way Bulkhead Connector with Size 23 Pins - Yellow
SKU: CONASL00605PA
Summary:
Shell size 06 Autosport Lite bulkhead that takes 28 to 22 AWG wire. The yellow keyway means it only mates with yellow-keyed Autosport connectors. Contacts are rated to 3 amps each and come with an insert/removal tool.
Excl. GST (Incl. GST)
$100.12 ($115.14)
Buy in Bulk and Save!
Description:

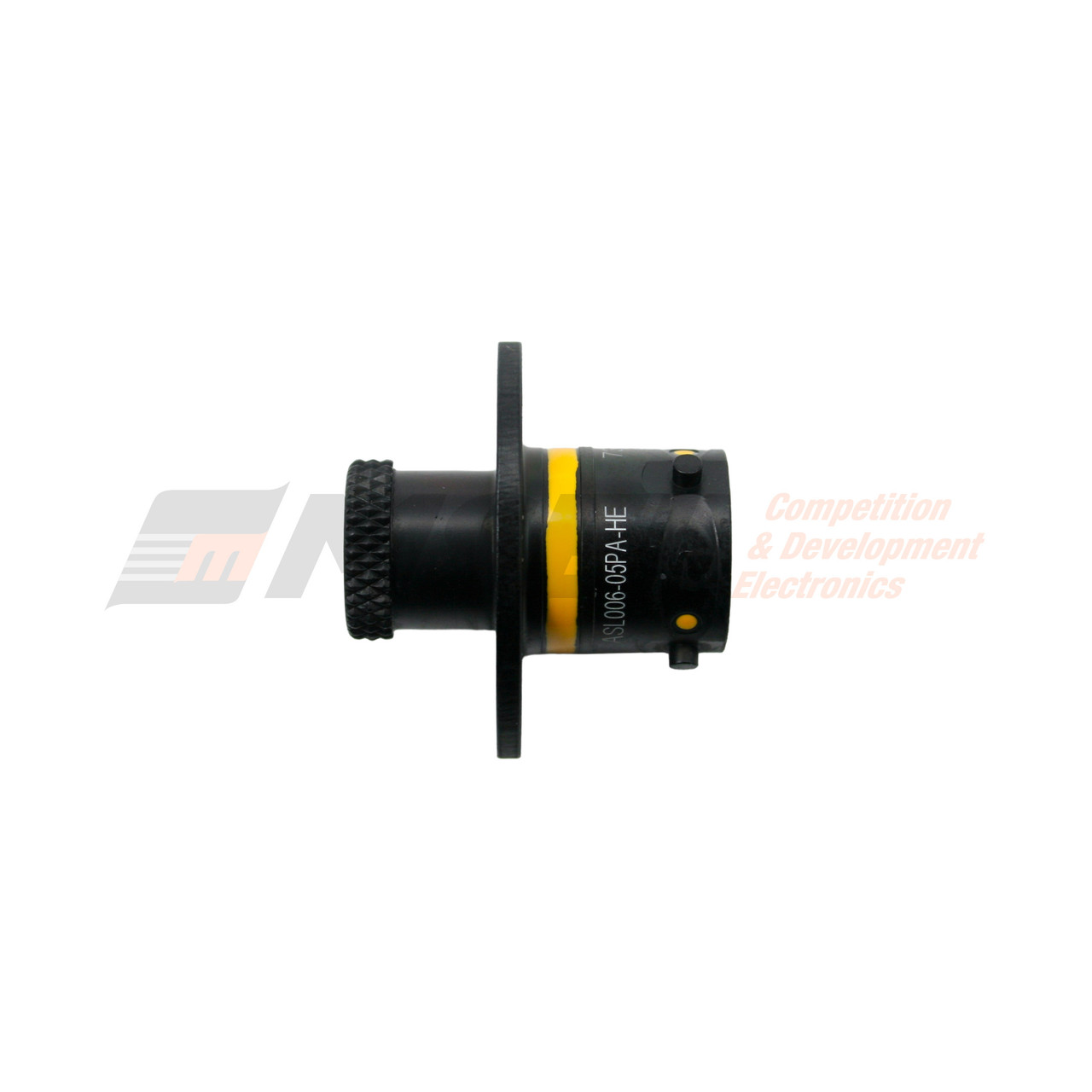

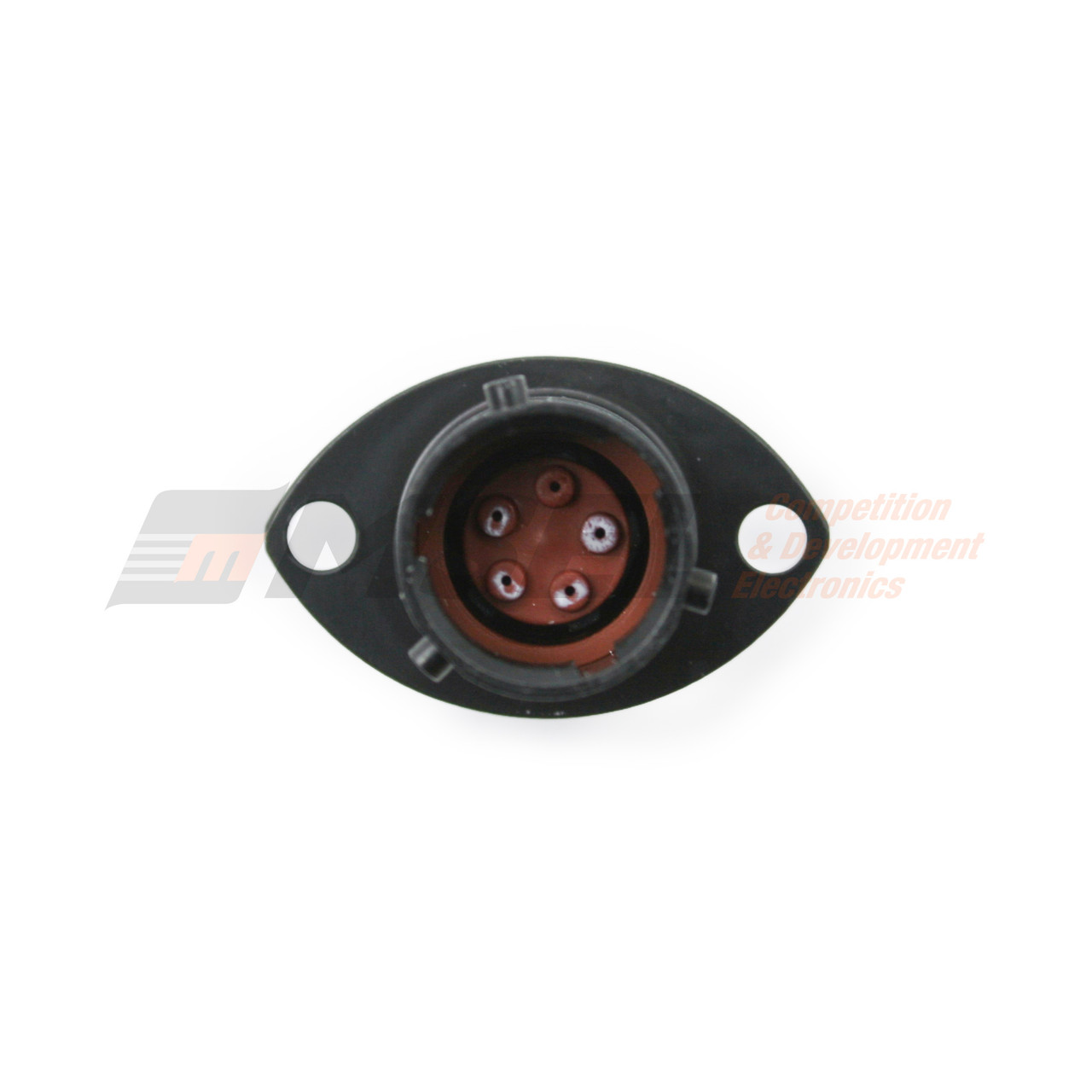

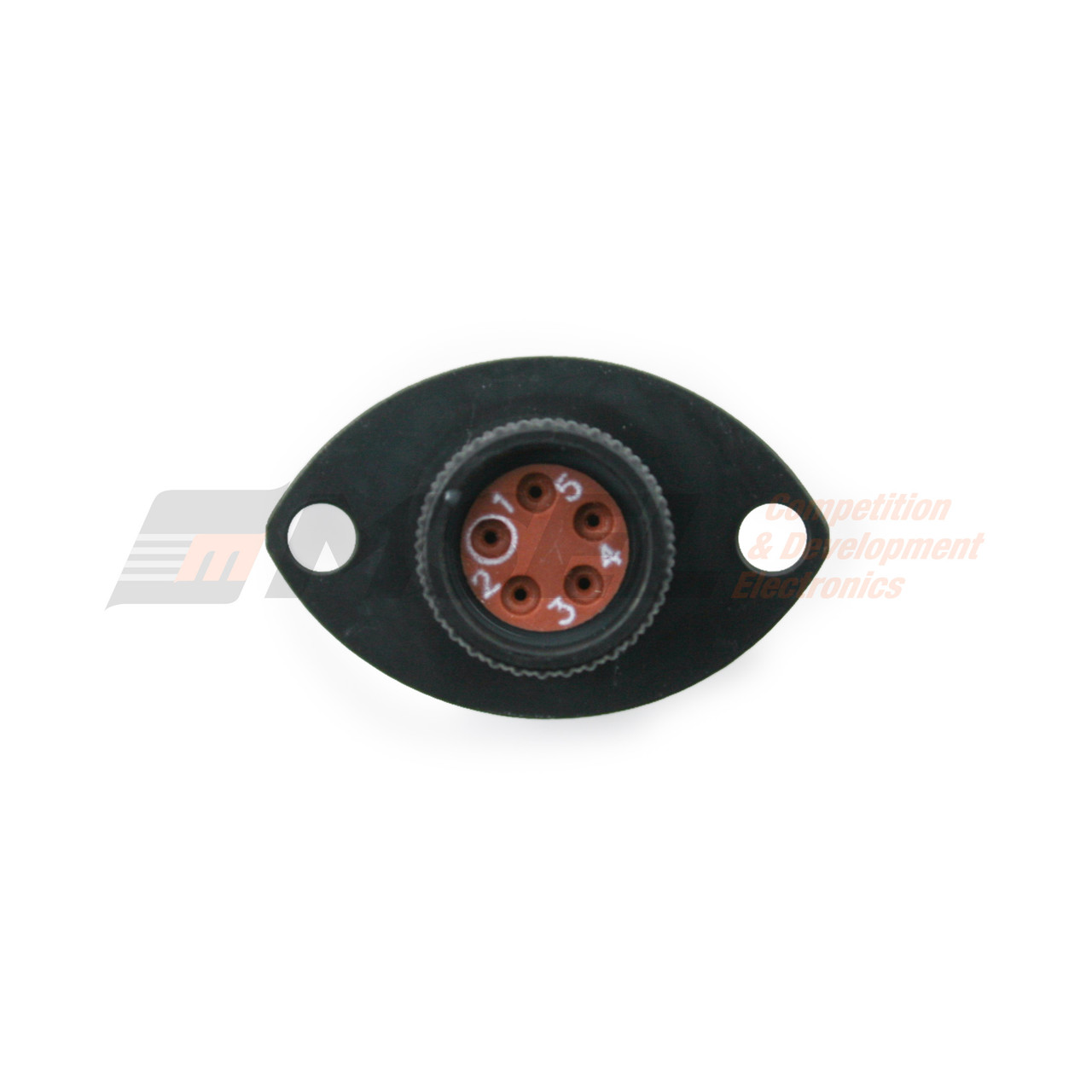

Deutsch Autosport Lite 5-Way Bulkhead Connector with Pins - Yellow
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 00605PA | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 06 | |
| Orientation | Yellow (A) | Will only mate with yellow connectors |
| Number of Contacts | 5 | |
| Contact Size | 23 | Supports 28 to 22AWG wire |
| Contact Type | Pins | Male |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOC1414 | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
|

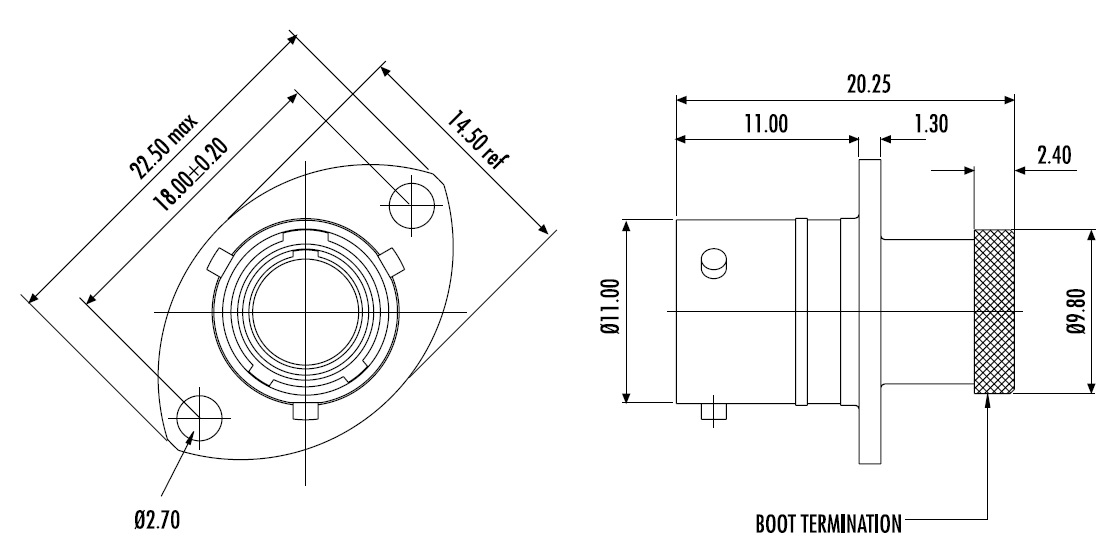

Note: all dimensions are in millimeters (mm)
