Autosport 6-Way Plug Connector with Size 22D Sockets - Red
SKU: CONAS60835SN
Autosport 6-Way Plug Connector with Size 22D Sockets - Red
SKU: CONAS60835SN
Summary:
Shell size 08 Autosport plug that takes 28 to 22 AWG wire. The red keyway means it only mates with red-keyed Autosport connectors. Contacts are rated to 5 amps each and come with an insert/removal tool.
Excl. GST (Incl. GST)
$119.50 ($137.42)
Buy in Bulk and Save!
Description:

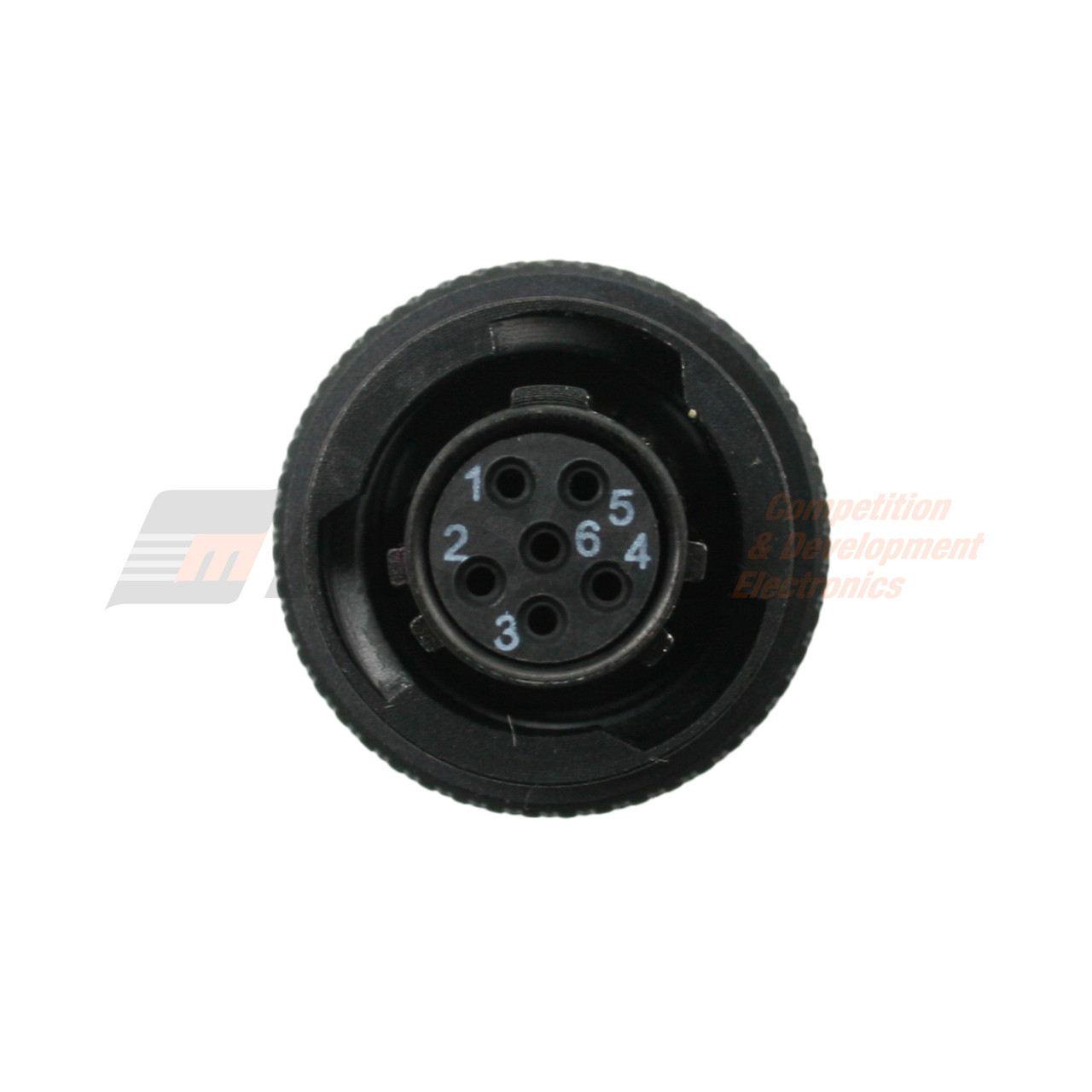

Autosport 6-Way Plug With Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 60835SN | |
| Connector Type | Plug | |
| Shell Size | 08 | |
| Orientation | Red (N) | Will only mate with red connectors |

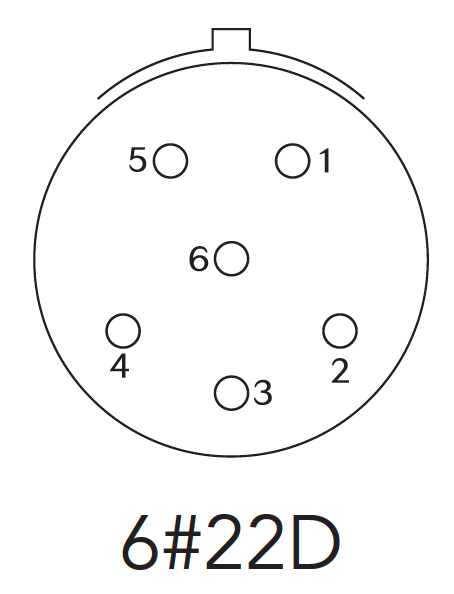

| Number of Contacts | 6 | |
| Contact Size | 22D | Supports 28 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK40 | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
|

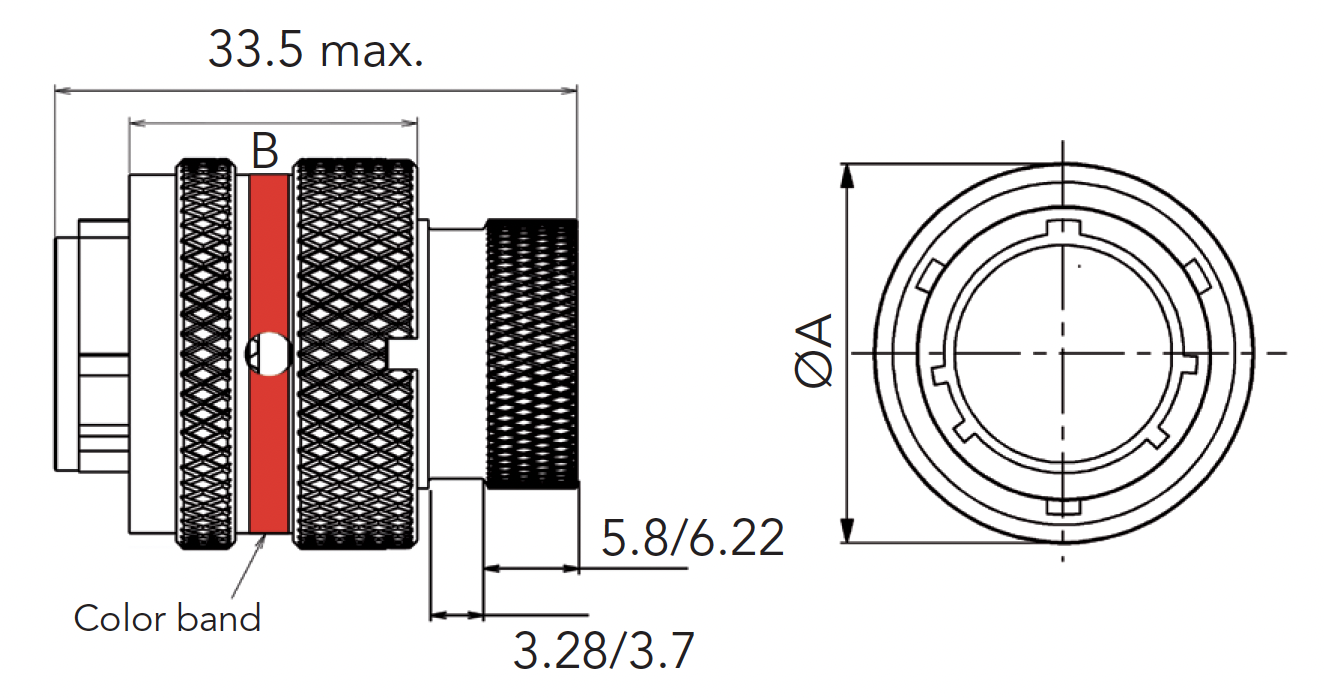

| ØA max. | B max. |
| 18.70 | 18.55 |
Note: all dimensions are in millimeters (mm)
