Autosport 6-Way Plug Connector with size 20 Pins - Red

SKU:
CONAS61098PN
Quantity Unit Price (Inc GST)
3 + $108.07 ($124.28)
10 + $102.38 ($117.74)
  • 61098PA autosport 6-Way Plug Connector with Size 20Pins

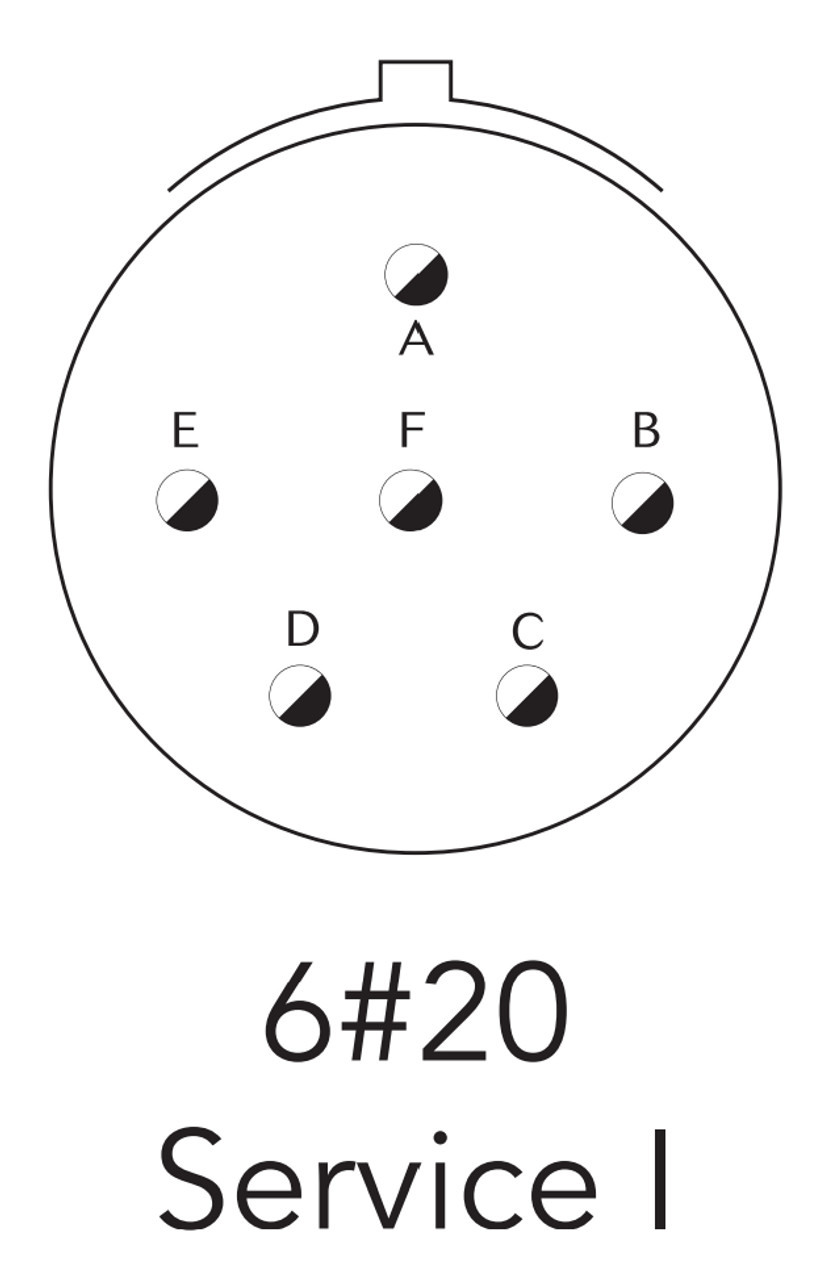

  • 61098PA autosport 6-Way Plug Connector layout
Per Unit
$113.76 ($130.82) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

Autosport 6-Way Plug Connector with size 20 Pins - Red

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.

Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.

Feature Specification Notes
 Part Number  61098PN
 Connector Type  Plug
 Shell Size  10
 Orientation  Red (N)  Will only mate with red connectors
 Number of Contacts  6
 Contact Size  20  Supports 24 to 20AWG wire
 Contact Type  Pin  Male
 Current Rating  7.5 Amps
 Termination Type  Crimp
 Locator  TOOAF8TH1A  Refer to Related Products below (not incl.)
 Kit Contains
connector housing, contacts and insert/removal tool




ØA max. B max.
21.50 18.55

Note: all dimensions are in millimeters (mm)
