Description

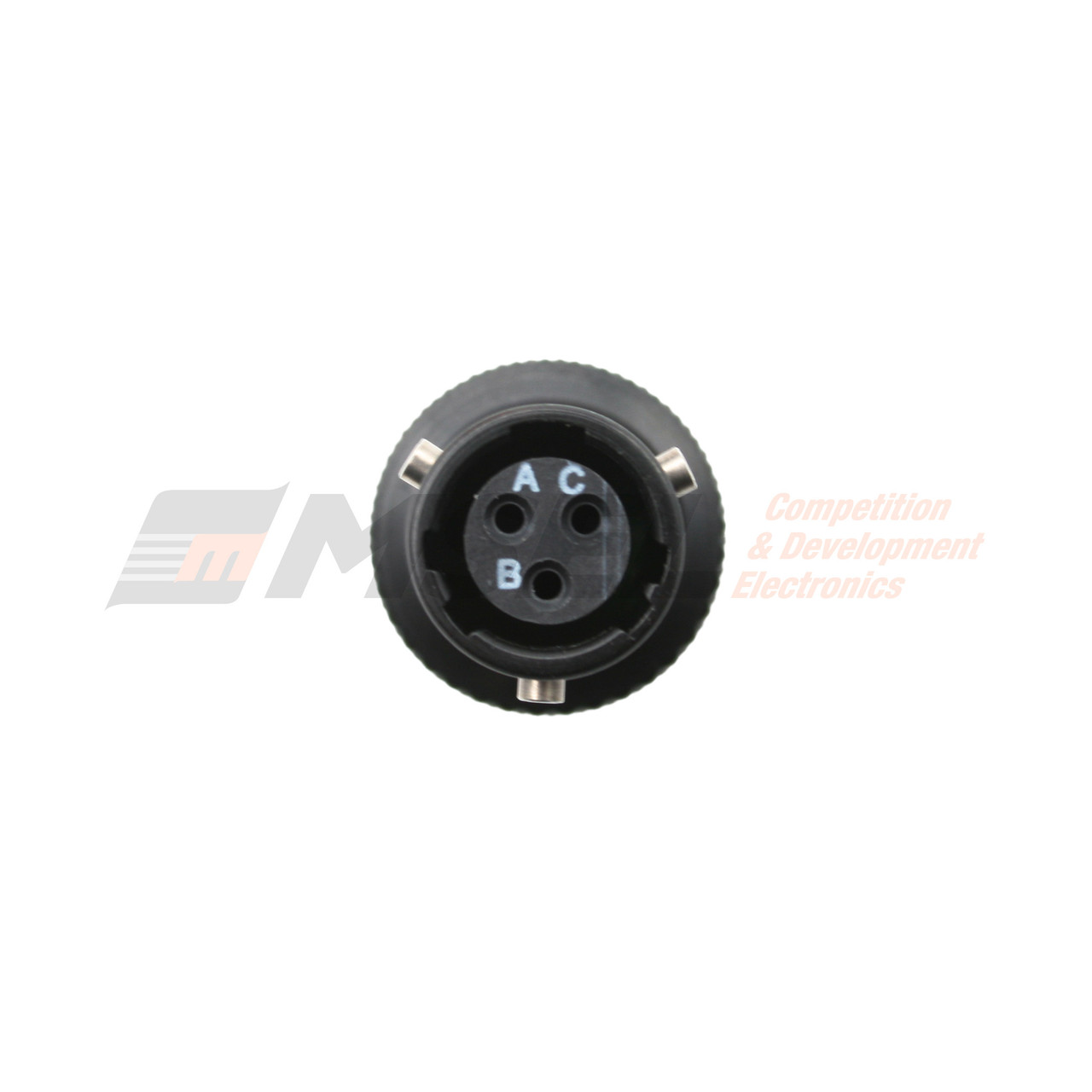

Autosport 3-Way In-line Receptacle with Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 108-98SN | |
| Connector Type | In-line Receptacle | |
| Shell Size | 08 | |
| Orientation | Red (N) | Will only mate with red connectors |

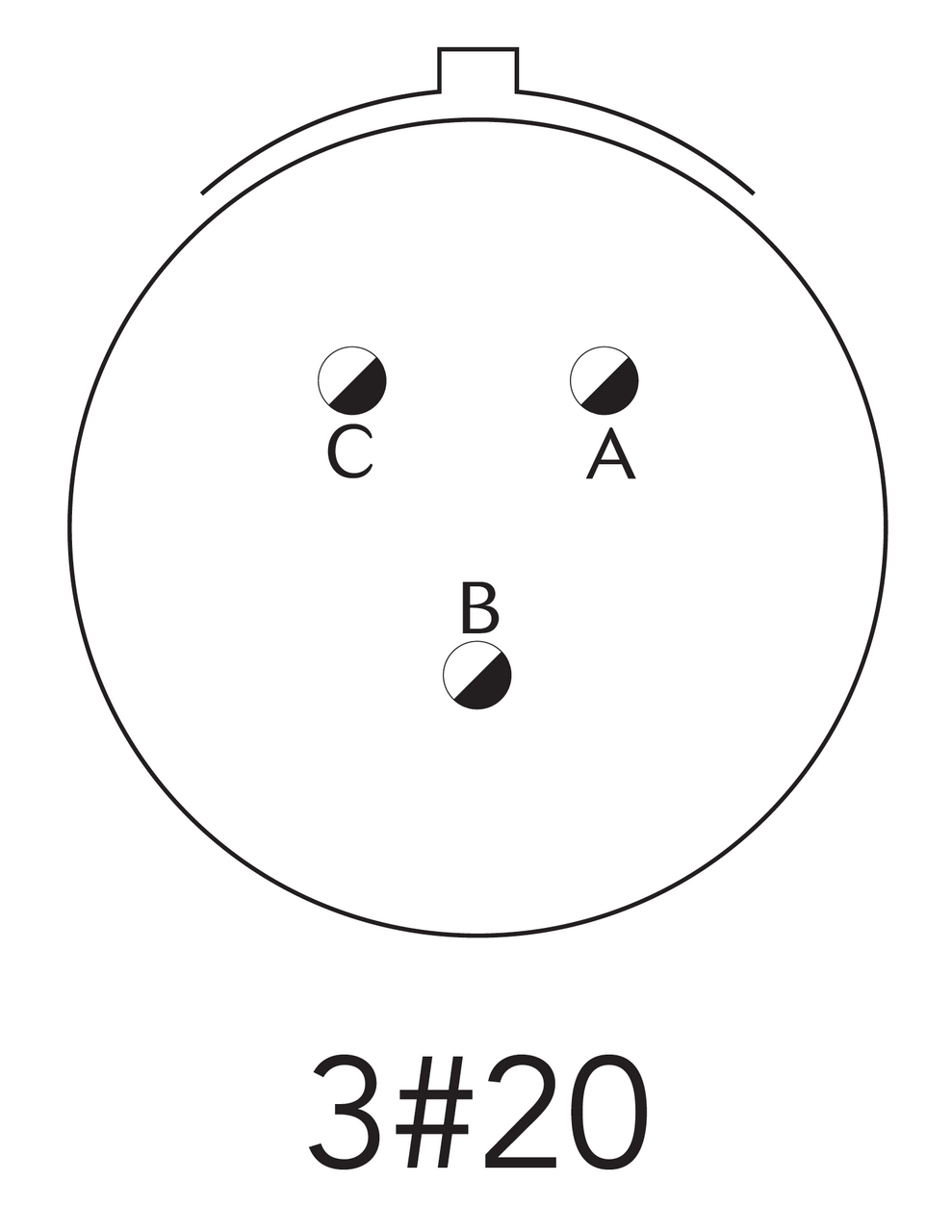

| Number of Contacts | 3 |
|
| Contact Size |
20
|
Supports 24 to 20AWG wire
|
| Contact Type |
Socket
|
Female |
| Current Rating |
7.5A
|
|
| Locator | #20 Autosport | |
| Kit Contains |
connector housing, contacts and insert/removal tool
|

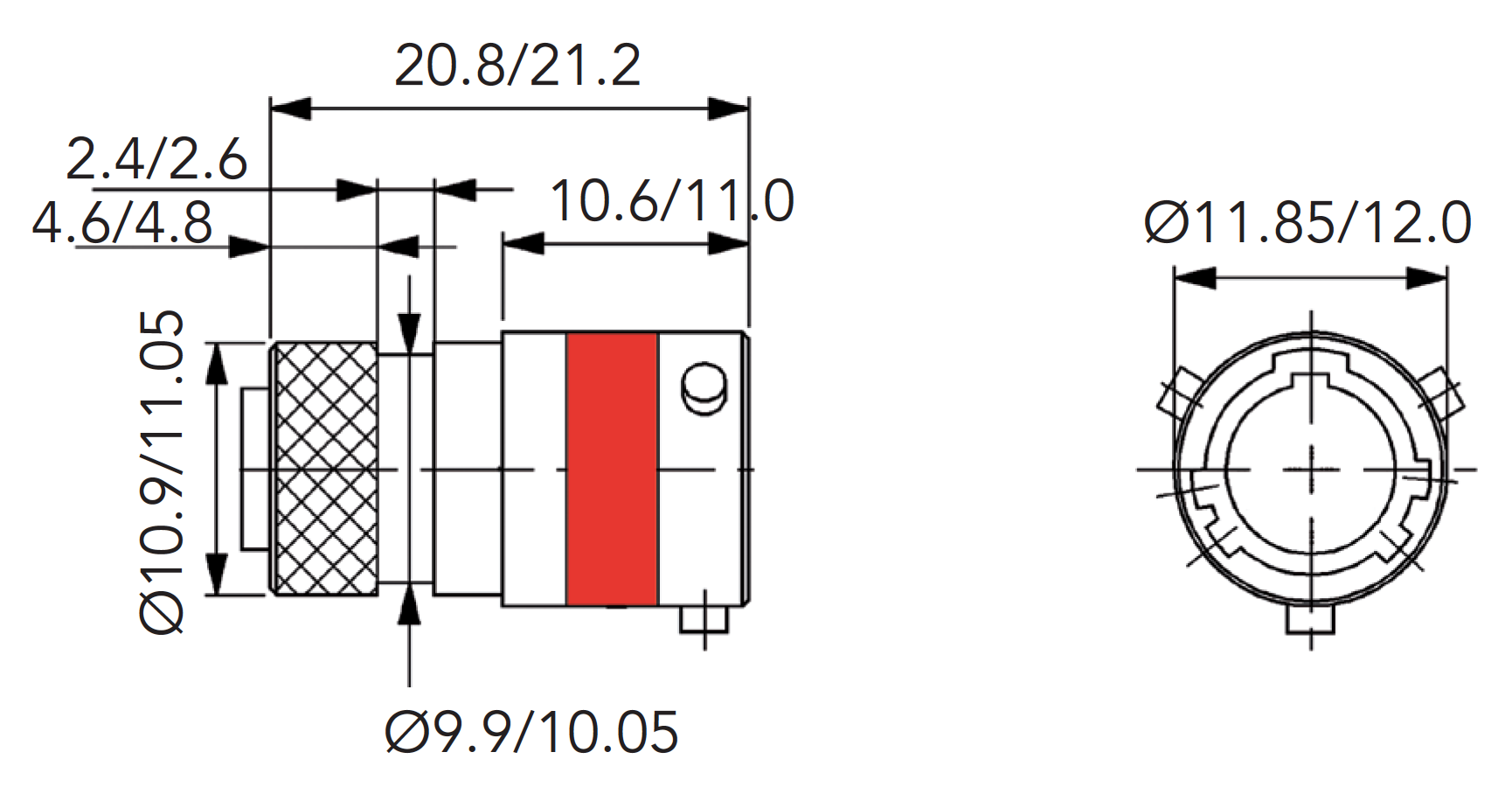

| A max. | B max. | C max. |
| 17.70 | 33.50 | 15.00 |
Note: all dimensions are in millimeters (mm)
