Description:

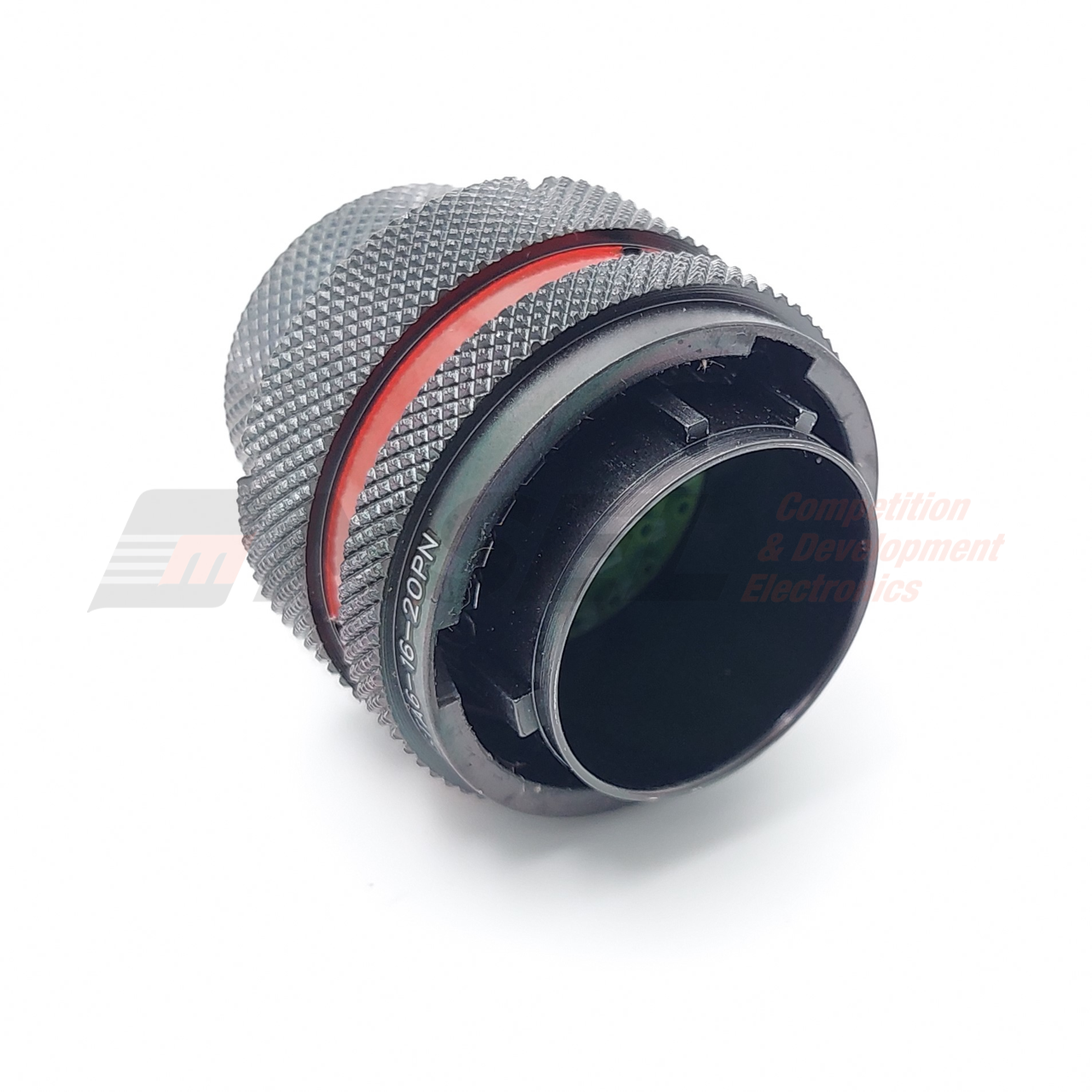

Autosport 20-Way Mixed Plug Connector with 16 x Size 22 and 4 x Size 12 Pins - Red
Connector kit includes contacts and insert/removal tool.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 61620PN | |
| Connector Type | Plug | |
| Shell Size | 16 | |
| Orientation | Red (N) | Will only mate with red connectors |

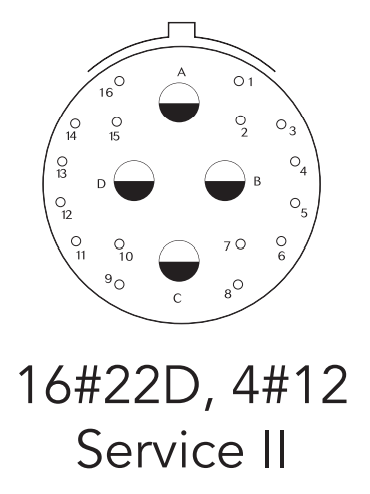

| Number of Contacts | 20 | 16 size 22 contacts and 4 size 12 contacts |
| Contact Size |
16 x 22
4 x 12
|
Supports 26 to 22AWG wire
Supports 14 to 12AWG wire
|
| Contact Type | Pin | Male |
| Current Rating |
16: 5 Amps
4: 25 Amps
|
|
| Termination Type | Crimp | |
| Locator |
TOOLOCK42
TOOAF8TH1A
|
Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |

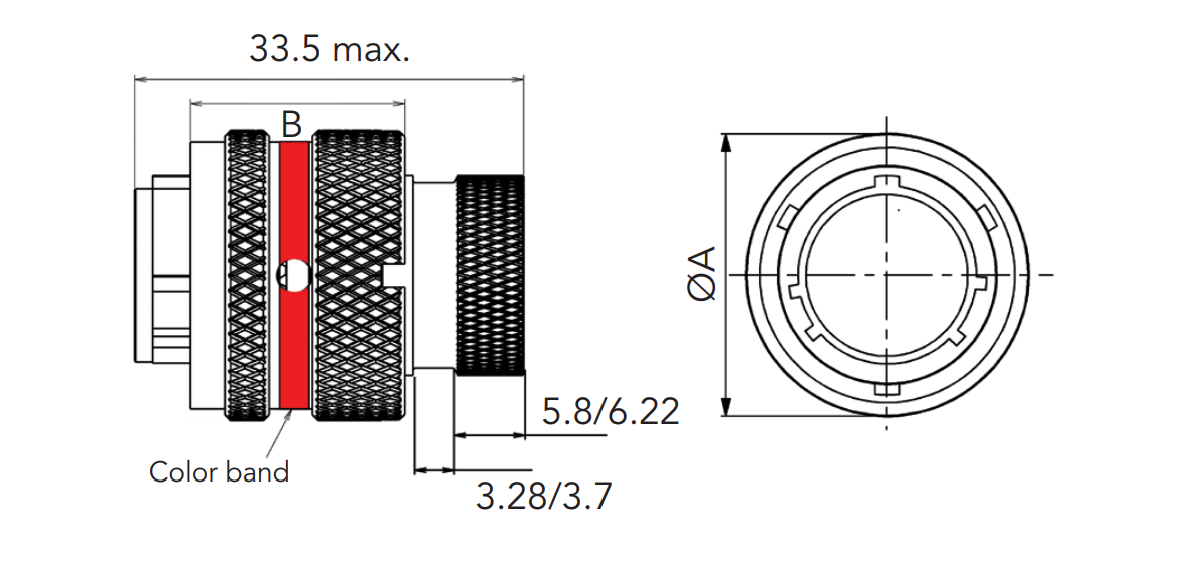

| ØA max. | B max. |
| 32.20 | 18.55 |
Note: all dimensions are in millimeters (mm)
