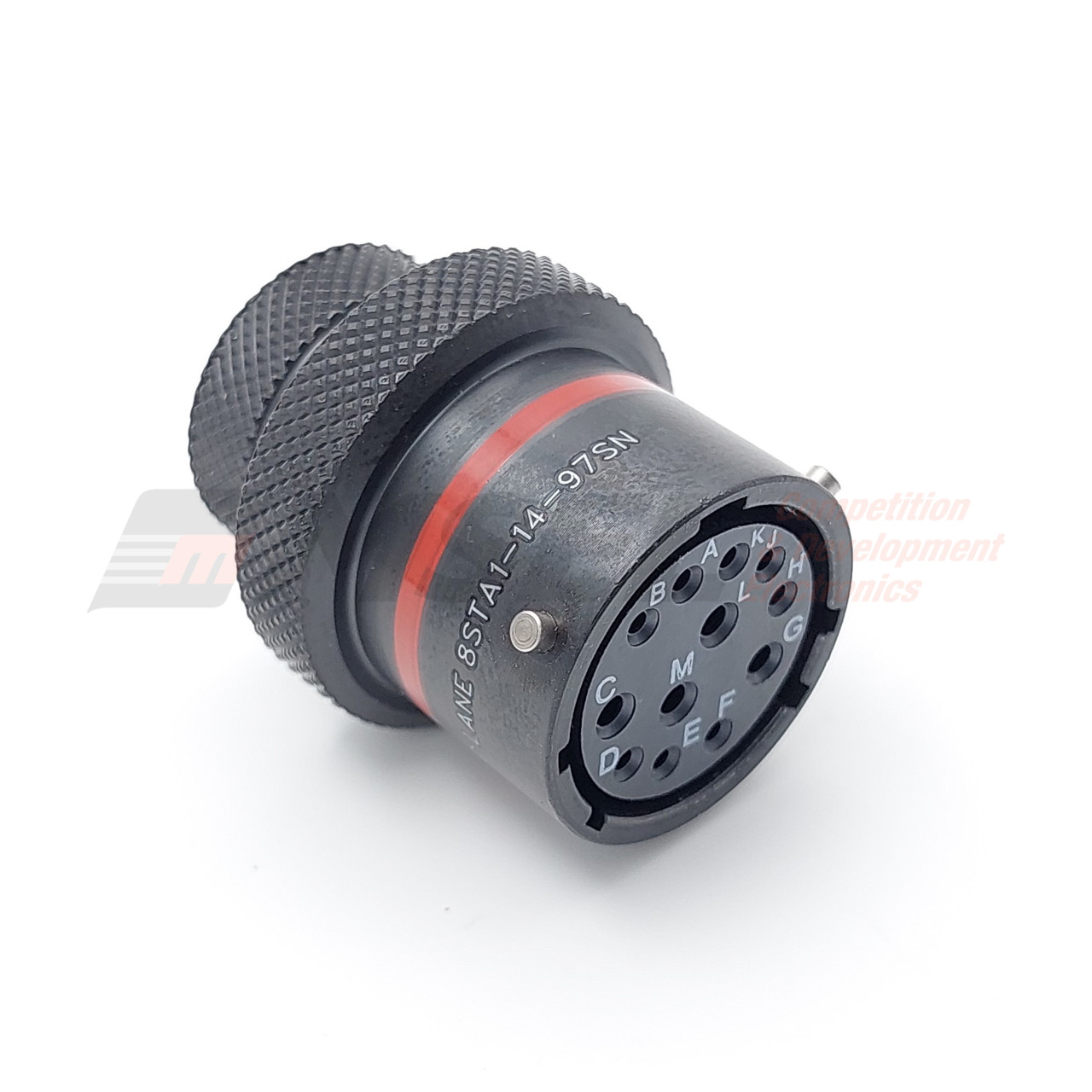

Autosport 12-Way Mixed In-line Receptacle with 8x size 20 & 4x size 16 Sockets - Red
SKU: CONAS11497SN
Autosport 12-Way Mixed In-line Receptacle with 8x size 20 & 4x size 16 Sockets - Red
SKU: CONAS11497SN
Summary:
Autosport 12-Way Mixed In-line Receptacle with 8x size 20 & 4x size 16 Sockets - Red Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating. Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the pag…
Excl. GST (Incl. GST)
$211.61 ($243.35)
Buy in Bulk and Save!
Description:
Autosport 12-Way Mixed In-line Receptacle with 8x size 20 & 4x size 16 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 11497SN | |
| Connector Type | In-line receptacle | |
| Shell Size | 14 | |
| Orientation | Red (N) | Will only mate with red connectors |

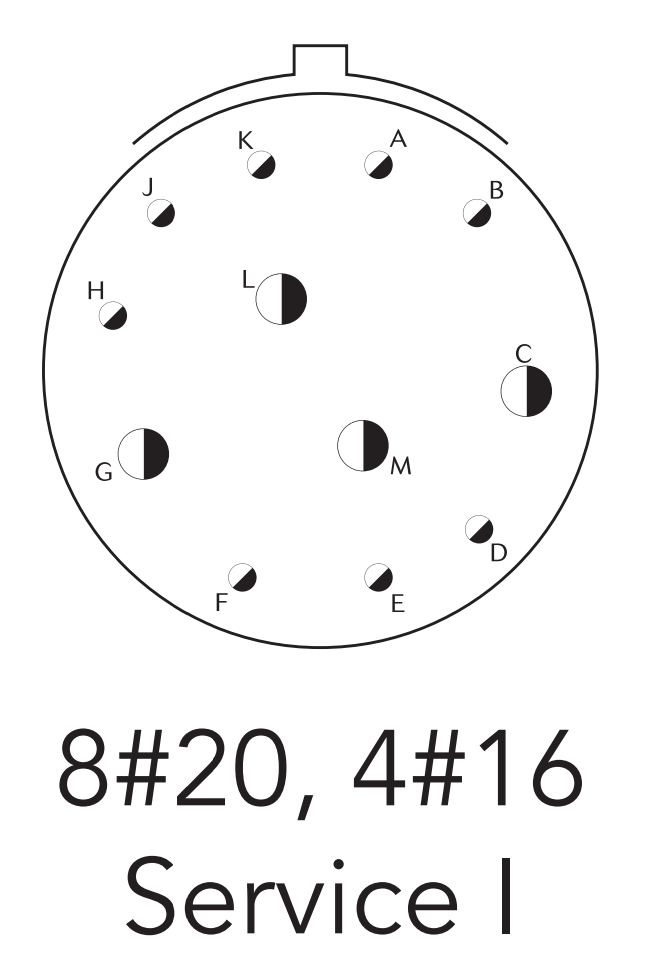

| Number of Contacts |
12
|
8 size 20 contacts and
4 size 16 contacts
|
| Contact Size |
8x 20
4x 16
|
Supports 24 to 20AWG wire
Supports 20 to 16AWG wire
|
| Contact Type |
Socket
|
Female |
| Current Rating |
8: 7.5 Amps
4: 13 Amps
|
|
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| ØA max. | ØD | G max. |
| 28.3 | 22.22 | 33.50 |
Note: all dimensions are in millimeters (mm)
