Description

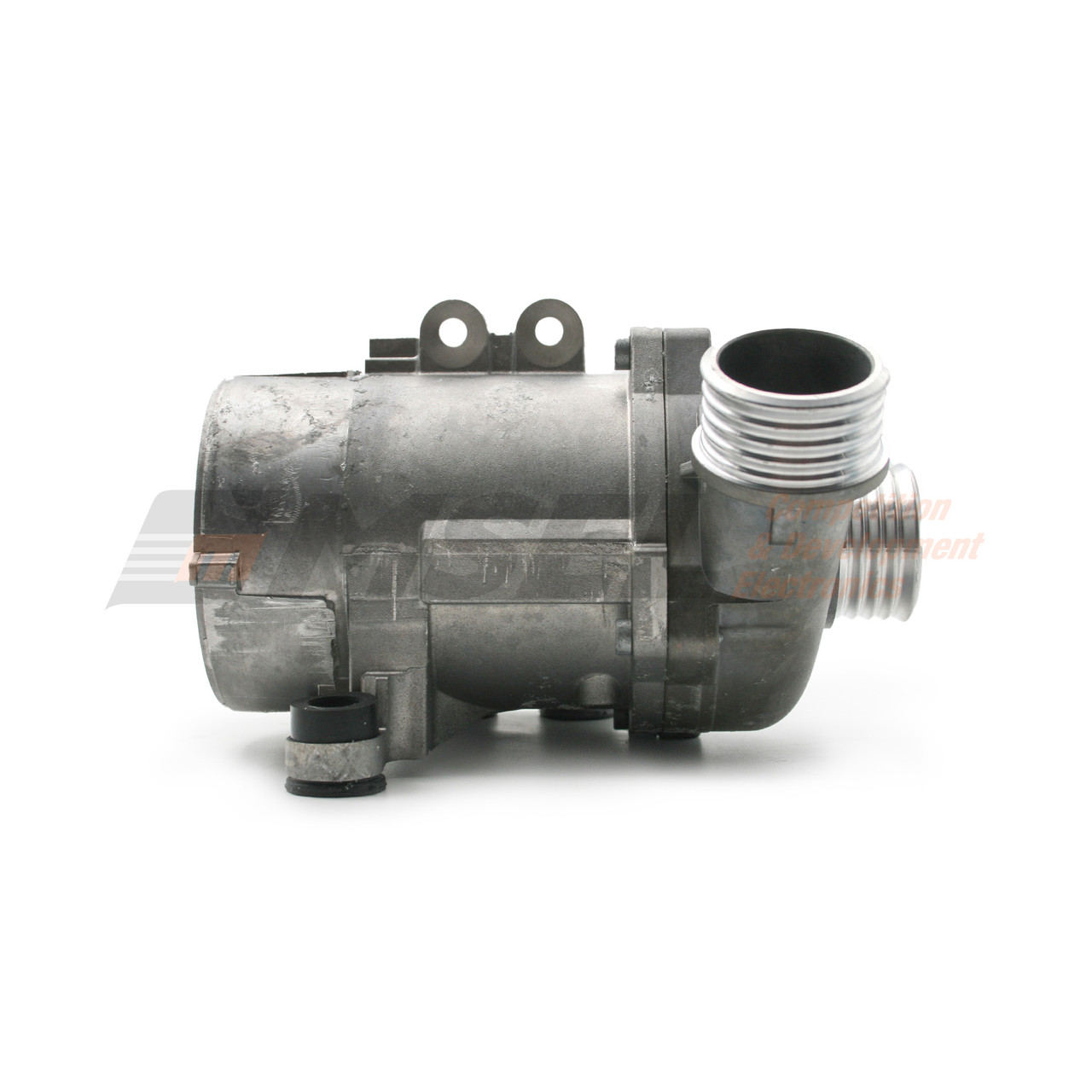

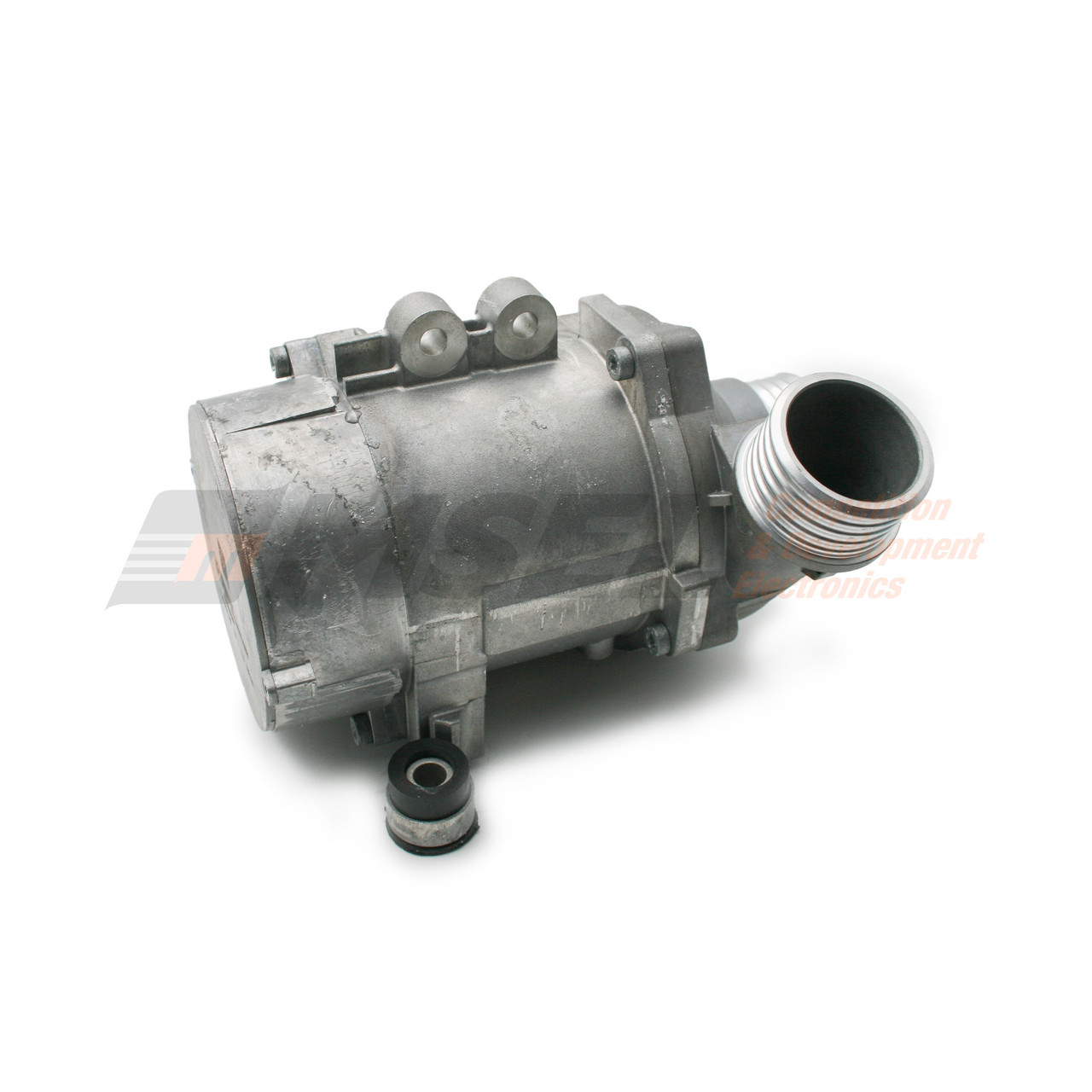

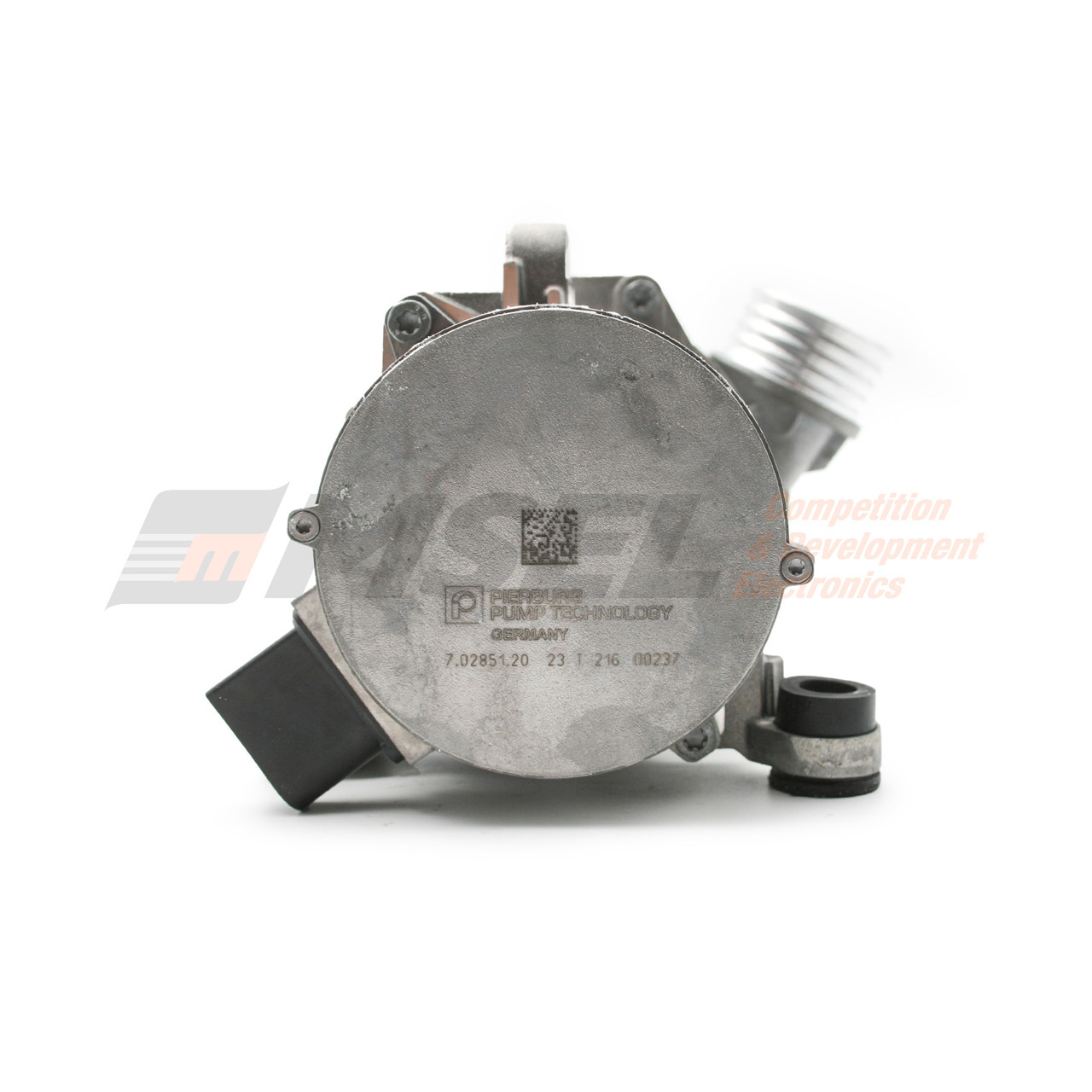

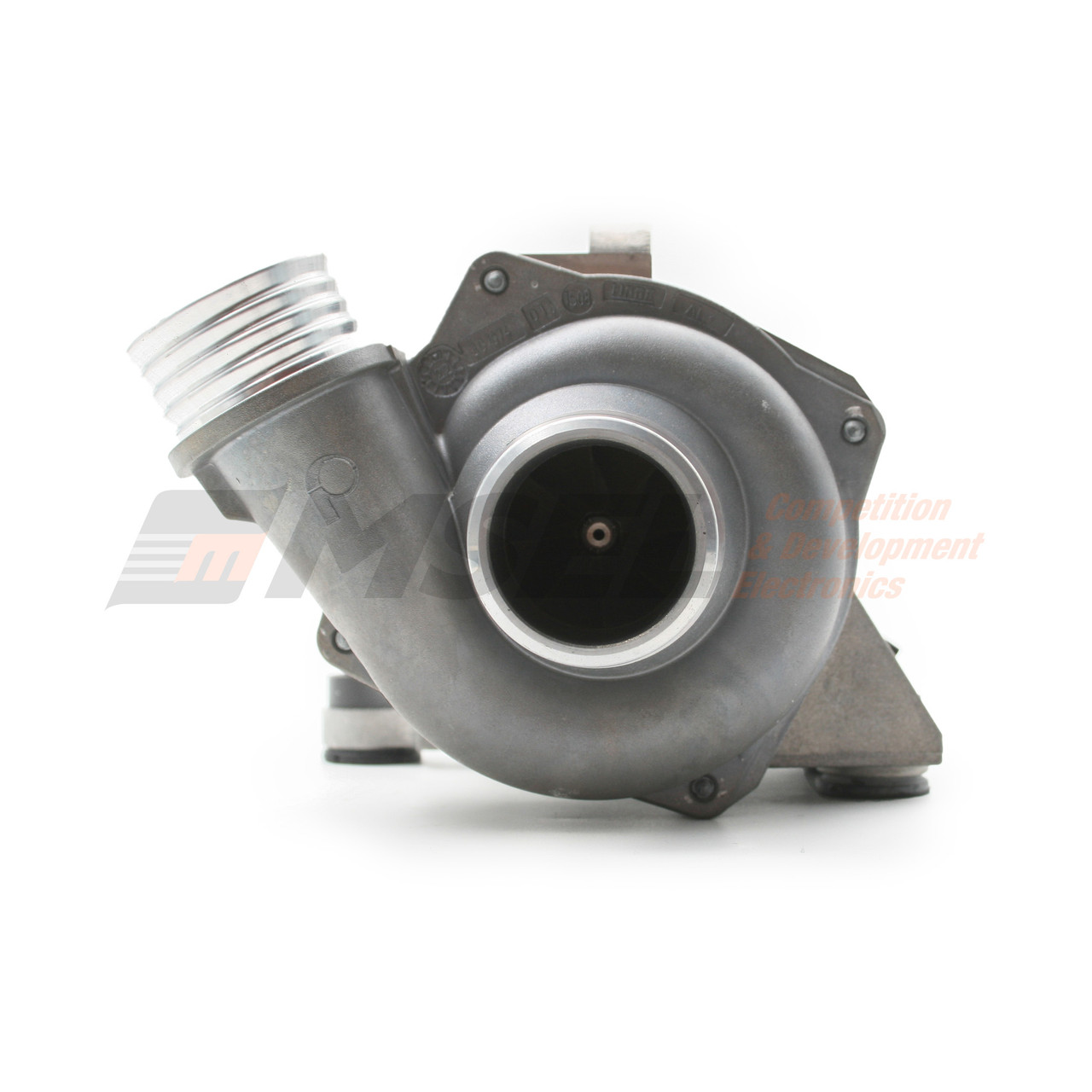

Genuine Pierburg 200 Variable Speed Electric Water/Coolant Pump
Run your coolant pump at a different speed to engine speed, even when the engine is not running. Great for coolant circulation after a run. Speed control is through PWM.
- Operation voltage: 8-16 volts
- Speed control through pulse width modulation.
- Weight: approx. 2.15 kg
- Current consumption: 15A (16.5A max.) / (approx. 0.2mA in standby mode)
- Nominal diff. pressure: 0.45 bar
- Flow rate: ca. 116 l/min @ 0.45bar / 166 l/min @ 0.30bar
- Speed: approx. 4500 rpm
- Temperature range: -40°C – 128°C (water) / -40°C – 140°C (ambient)
- Environmental Protection: IP67
Canned brushless motor for reliability. Unlike some other water pumps on the market, this pump was developed and used in German road car applications and must pass stringent OEM quality and reliability testing.
Speed control is through pulse width modulation. An aftermarket engine management system or controller is required for speed control to work.
Note that pump pressure is not the same as system pressure. This pump is designed to work in a normal 0.8 to 1.2bar (11 to 17.5psi) cooling system.
