Description
Autosport Lite 5-Way Plug Connector with size 23 Sockets - Red
For use with Motec BR2 and ACL

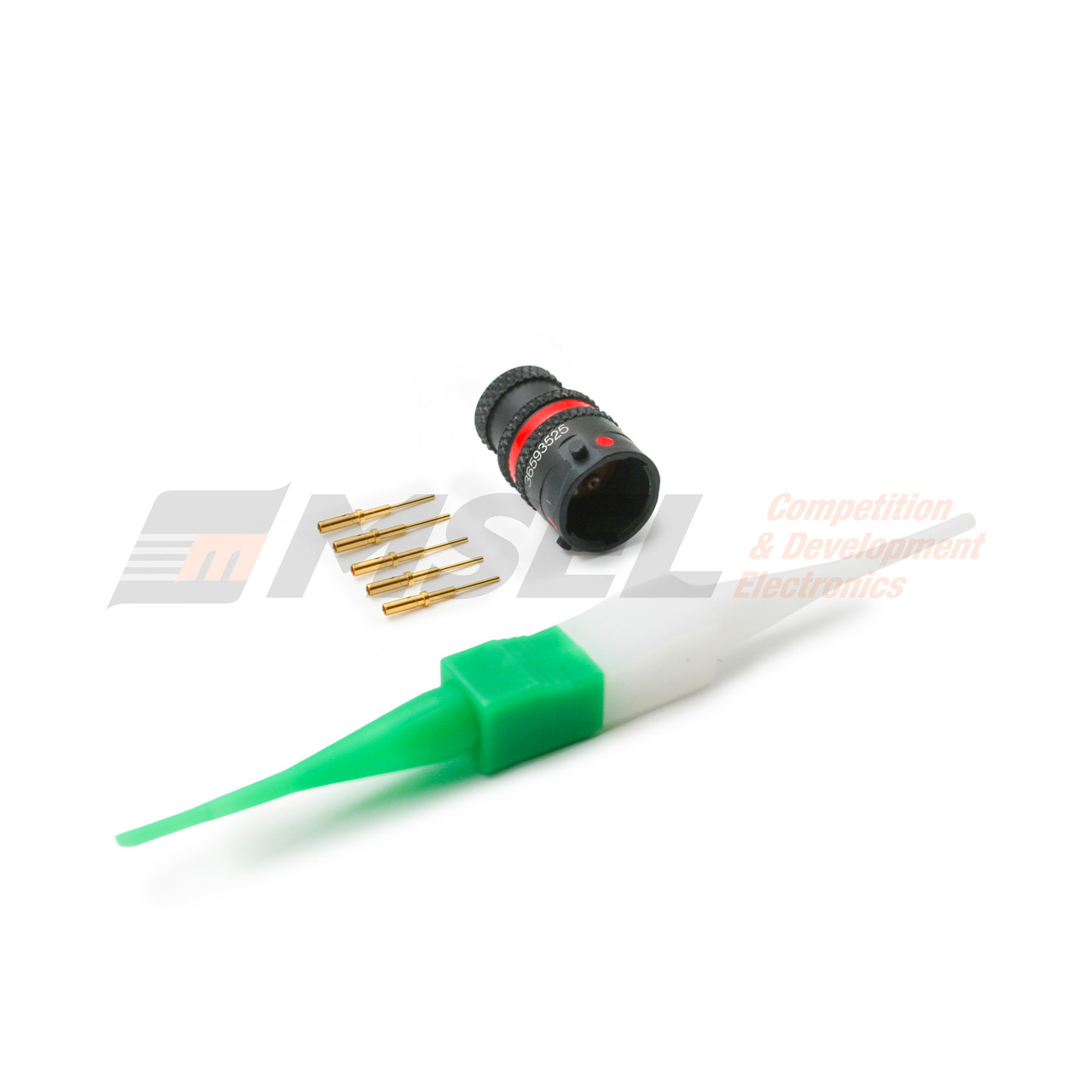

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
Feature | Specification | Notes |
Part Number | 60605SN | |
Connector Type | Plug | |
Shell Size | 06 | |
Orientation | Red (N) | Will only mate with red connectors |
Number of Contacts | 5 | |
Contact Size | 23 | Supports 28 to 22AWG wire |
Contact Type | Socket | Female |
Current Rating | 3 Amps | |
Termination Type | Crimp | |
Locator | TOOLOC1414 | Refer to Related Products below (not incl.) |
Kit Contains | connector housing, contacts and insert/removal tool |

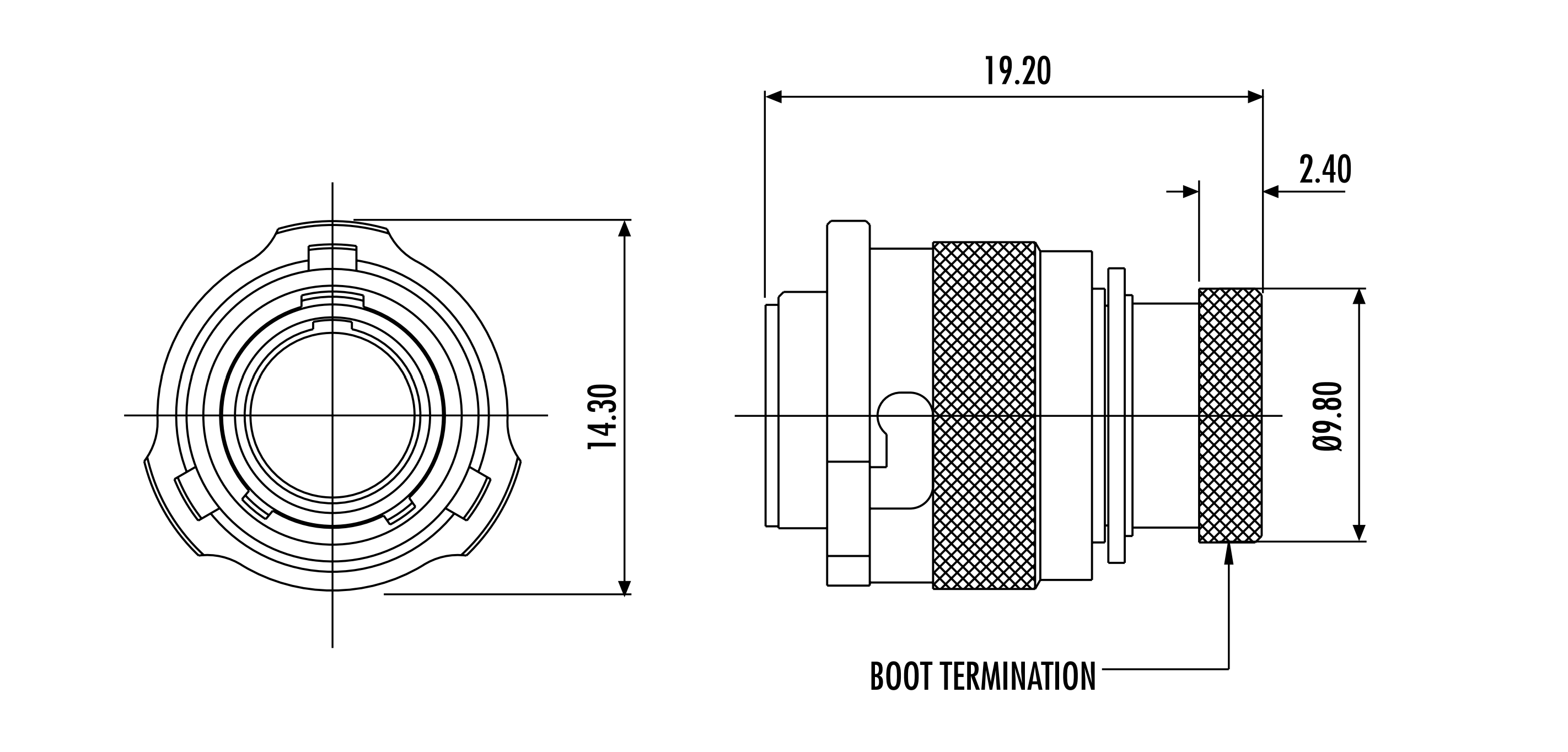

Note: all dimensions are in millimeters (mm)
